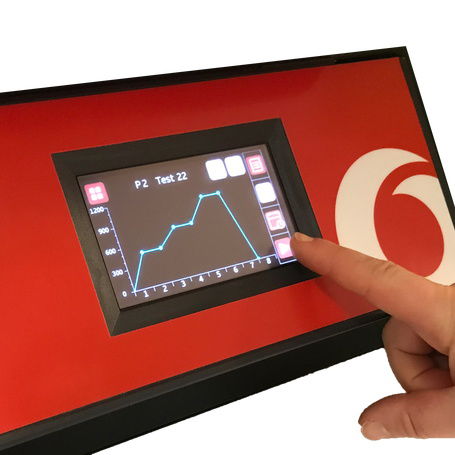

The CC-T1 touch screen controllers offer programmable control in which 24 segments may be set as ramp, step or dwell and may also be configured to control relays.

The CC-T1 series provides a touch screen interface giving intuitive access to a comprehensive menu including: selection and editing of program profiles; scheduling of programs at a defined date/time; data logging of setpoint and actual temperature; localization of language; user level security. The CC-T1 series can also store and retrieve 10 unique program profiles. Data-logging is to a csv file which is accessed through the adjacent USB port. Ethernet communication is fitted as a standard feature.

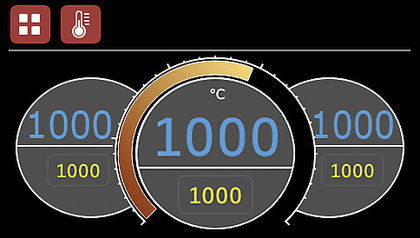

When specified with a 3-zone product the control method is user selectable to be either retransmission of setpoint or independent control. With retransmission of setpoint the main zone controller’s setpoint is automatically applied to the other zones. When running a program all zones will follow the program profile. With independent control each zones setpoint is set manually.

USER LEVEL FUNCTIONALITY
User level - Functions
Operator - Change temperature setpoint
Run pre-configured programs
Run data logging
Supervisor - All of the above plus:
Configure and edit programs
Manage alarms
Administrator - All of the above plus:
Set language, time and date
Edit data logging settings
Edit settings including calibration and serial communication
NAVIGATION SCREEN
The navigation screen gives easy access to all the CC-T1 functions.

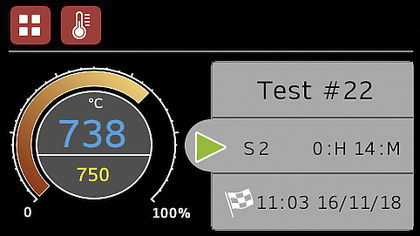

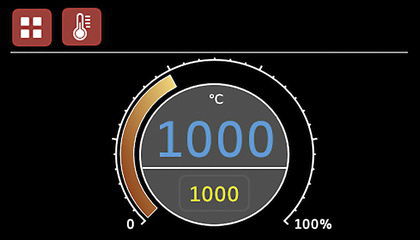

Home

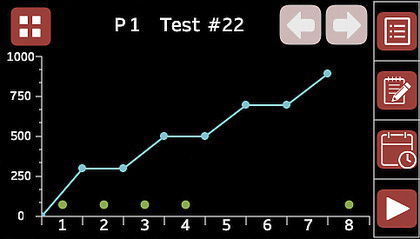

Program view
User login

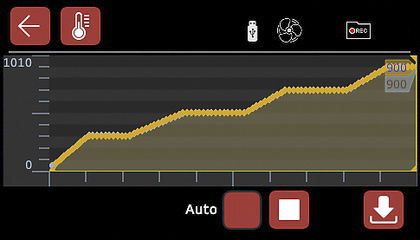

Data logging
Information
Communication settings
Settings
Offset calibration

Parameter Name	Parameter Value
Display	with touchscreen
Type	programmable
Protection level	standard
Other characteristics	safety
Maximum temperature (°C)	1200 - 1200
