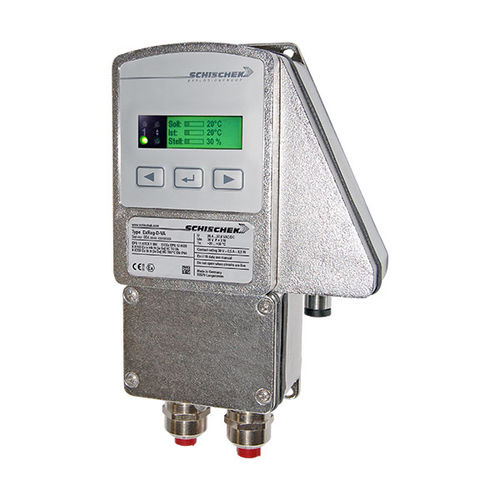

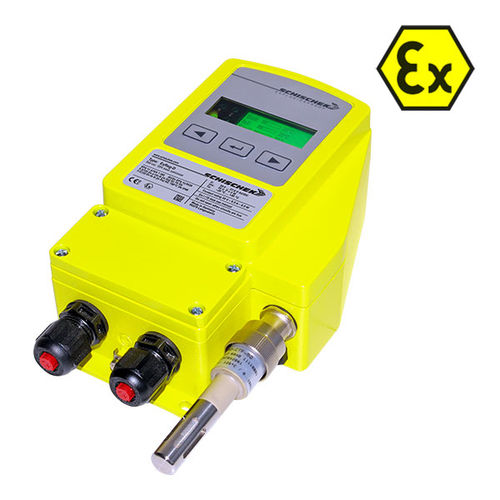

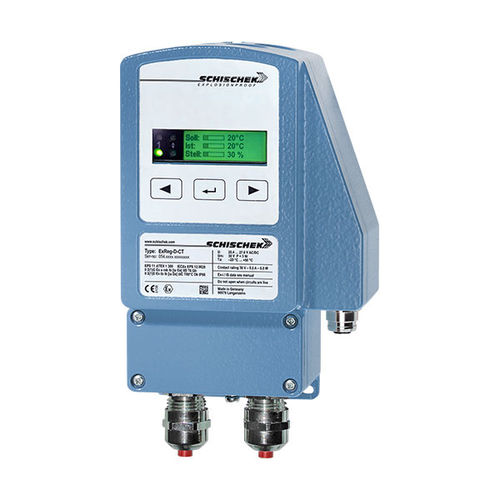

Compact temperature or humidity controller ExReg-D.. for applications in hazardous locations in zone 1, 2, 21, 22 in HVAC systems. Suitable control actuator ExMax-..-CY or ExRun (without spring return) or ExMax-..CYF (with spring return, safety function) available.

Benefits:
- can be configured on site in the hazardous location
- predifined settings
- reduced life-cylcle-costs
- no necessity to install safety barriers or to use special wiring
- integral PID loop
- also for mobile applications
- compatibility to market standards

Product Highlights:
- Measuring range -40...+125 °C or 0-100 %rH
- Supply 24 VAC/DC
- Robust aluminium housing, varnished, protection class IP66
- Certified according to ATEX, IECEx
- Switch-on delay 3 seconds
- adjustable alarm function
- LCD display, backlighted, switchable
- integrated Ex-e terminal box
- compact measurements
- Explosion proof for all gases, mists, vapours and dust

Optional:
Robust stainless steel version (AISI 316) or with offshore/marine coating.
Also available as temperature or humidity regulator InReg-D.. for applications in safe area (industrial applications).

Parameter Name	Parameter Value
Display	with LCD display with LED display
Type	programmable PID single-loop
Protection level	IP66 ATEX
Use	HVAC
Other characteristics	with humidity control
Maximum temperature (°C)	-40 - 125
