About
- Electronic PID temperature controller with auto-tuning function
- Parameters can be set at the sensor input for all common temperatur sensors
- Suitable for controlling electrically heated M&C components with temperature sensors
- If the controller is ordered in combination with an M&C component, the parameters will be set and the controller will be pre-programmed especially for this component
- With LED display
- In a rail-mount enclosure
- Power: 110–240 V
PID self-optimizing temperature controller in a rail-mounting enclosure for different sensors, e.g. for SP2000-H320/S.1, SP2000-H320/DIL, SP2000-H320/C, SP2000/PT100, SP2000/FeCuNi, SP2000/SP30 ... or SP2000/SP35…
The temperature controller type 70304.2 is used for all heated components where the standard thermostat can be replaced by an electronic controller or where controlling by a thermostat is not possible. Moreover, it can be used for heated sample lines if a temperature alarm is necessary. For operation, an additional switching relay is necessary.

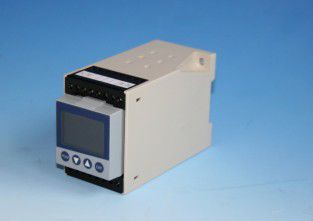

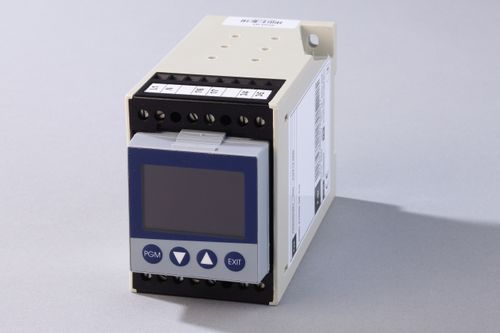

Electronic PID temperature controller type 70304.2 with self‑optimization and LED display in a rail‑mount enclosure, sensor input: resistance thermometer, thermocouple, dimensions (W x H x D): 55 x 75 x 123 mm, 3 relay contacts (NO) available, relais capacity: 250 V AC, 3 A, power: 110‑240 V, 50‑60 Hz
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Display |
with LCD display
|
| Type |
PID
|
| Other characteristics |
|
