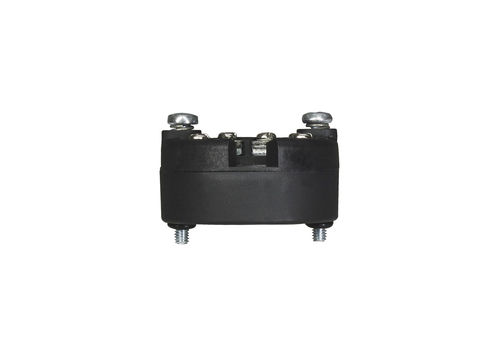

The transmitters for DIN/B head convert a signal acquired by temperature probes PT100, PT1000 or Ni100 (with 2-, 3- and 4-wire connections) or Thermocouples into a 4..20 mA signal (2-wire technology), current-loop. These converters ensure high accuracy on the reading scale with 16-bit conversion and possibility to rescale the output 4..20mA basing on input range.

Quick and simple programming

Programming relies on RFid /NFC connectivity; a dedicated programmer allows to perform all settings and any calibration quickly without need to power up/connect the converters. The RF-Programmer software (available from Download area of this website) allows to download, view on PC and print the temperature-time profiles.

An App for Android devices equipped with NFC antenna is also available and makes it possible to program, modify and see data on the field.

Check the video-tutorials below for more details.

2.8K Word non volatile (circular buffer) memory are dedicated to a data-logging function with a sampling time that can be set by the user.

Parameter Name	Parameter Value
Signal type	temperature regulator
Associated function	transmitter
Other characteristics	DIN rail for thermocouples
