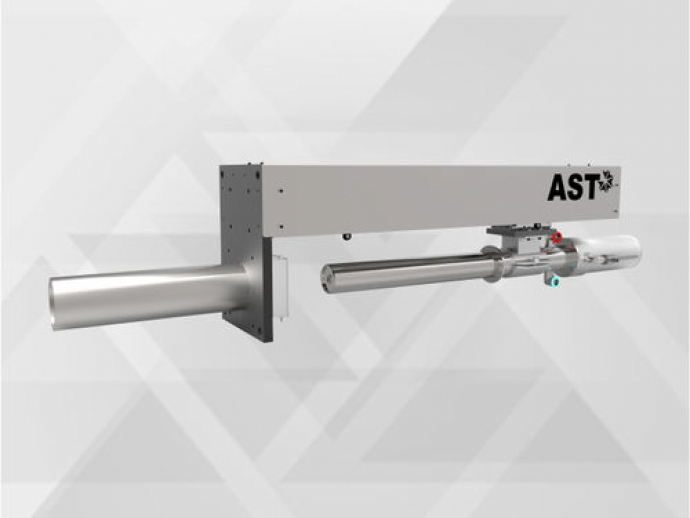

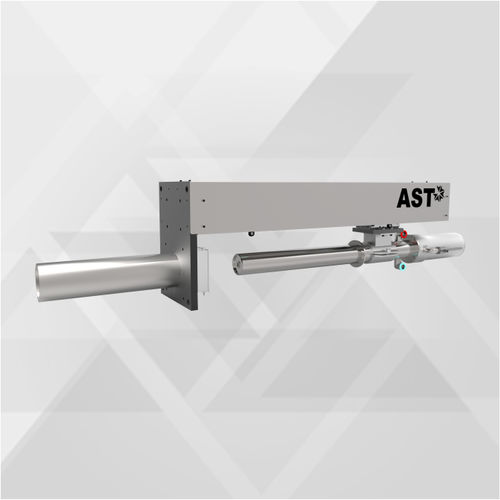

High temperature furnace monitoring system AST TFV-750/TFV-1100 provides inside wide angle view of the burner flames, material alignment and movement, and other processes in the furnace like kiln, heating stove or other combustion chamber. The TFV- 750 /TFV-1100 is mounted on wall of the furnace. It consists of auto retraction and insertion system which is regulated by control cabinet with PLC & Pneumatic control system.We use special HD camera with high precision elbow view pinhole lens which is mounted inside stainless steel probe. The probe is equipped with vortex air & water cooling system that enables the system to work in high temperature environment and also continuous supply of air keeps the lens clean.When the temperature of the inner Probe rises above the set limits or the pressure of compressed air & flow of water decreases below the set value, then camera will automatically move out of the furnace. The Camera is inserted through a spring loaded shutter which opens the force of camera probe & shuts the furnace opening when the probe is removed.

Product Features
• Water cooled lens tube,vortex cooled camera chamber
• Auto retraction & shutter
• Pneumatic cylinder
• Air purge
• Control Panel with pneumatic system
• Available in straight view & elbow view.

Applications
• Steel Industry : Steel Reheating Furnace
• Cement Industry : Kiln Monitoring
• Glass Industry
• Power Industry : Monitoring of burners,Grante Firing & Slag Run

Parameter Name	Parameter Value
Type	temperature
Applications	for combustion chambers for rotary kiln
Domain	for the metallurgical industry for the glass industry
Configuration	wall-mounted
Other characteristics	with integrated camera
