Flexible Adaption of the System to Types of Cells and Faults Being Tested

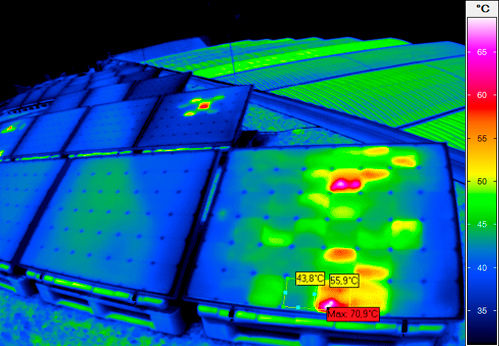

The construction of large-area photoelectric solar power plants requires the application of high-performance solar cells and modules of excellent quality. InfraTec's thermographic testing system PV-LIT allows testing of solar cells for various types of defects even in the manufacturing process. It is also possible to carry out a continuous quality control for serial productions in order to sort defective cells out at an early stage and, following, avoiding additional costs. According to the to-be-tested types of defects, PV-LIT provides the use of contact testing (DLIT) as well as non-contact testing (ILIT).

Further Features

- 100 Hz online voltage and current measurement, parallel to the lock-in excitation
- Sense-line measurement (compensation of voltage drop from the outlet)
- Power loss measurement with extended classification of shunts
- Timing diagram and export function of voltage-, current and temperature values
- Drift compensation
- Synchronized zoom the result images
- 0°/90° phase representation parallel to live and amplitude image

Parameter Name	Parameter Value
Type	temperature
Applications	for solar power plants
Technology	infrared infrared camera
Other characteristics	high-performance
