Fume cupboards are equipped as standard with a monitoring system in accordance with the specifications of EN14175-part 2. The monitor tells the user whether or not the airflow or speed is adequate and if there is an alarm. If there is an alarm, both a visual and an audible indicator will be activated.

Alarms:

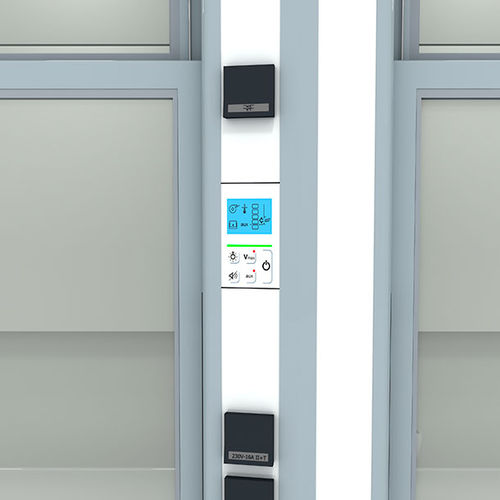

The monitor is equipped with different alarms that alert the user to different conditions such as: insufficient flow alarm, insufficient on-screen speed, faulty extraction motor, maximum temperature exceeded alarm, etc. The EO25 electronic system located on the right-hand side of the fume cupboard and based on a micro-controller operating at 5V provides complete, easy, and safe touch control of the electrical services in the cupboard.

Communications:

The EO25 is equipped with a 2-wire MODBUS-RTU digital communication module that makes it possible to create a network of up to 240 devices. Every fume cupboard has 42 accessible records that make it possible to view the operating parameters. This facilitates communication with BMS and IoT systems.

Parameter Name	Parameter Value
Type	temperature speed flow
Applications	alarm air
Configuration	wall-mounted
Interface	Modbus
Other characteristics	digital
