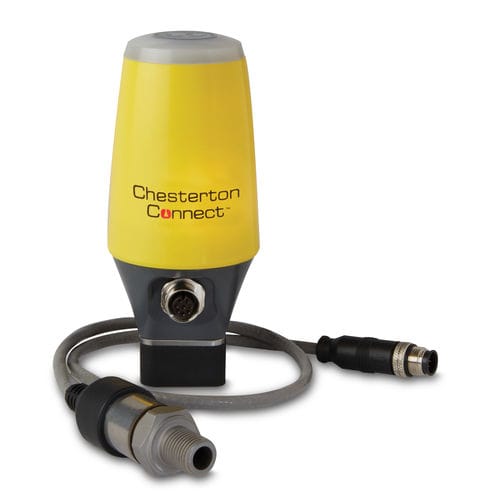

Simplified Equipment and Process Monitoring for Pumps and Sealing Systems
Chesterton Connect is a simple to use data acquisition tool that enables you to safely and conveniently monitor your process and equipment’s operating conditions. Using Bluetooth® technology and a robust design to withstand harsh environments, Chesterton Connect makes it easy to monitor:
• - Equipment vibration
• - Surface temperature
• - Process temperature
• - Process pressure
Easy to install, Chesterton Connect combined with the user-friendly app allows you to connect to multiple sensors, providing you with a comprehensive view of your plant’s equipment health. By setting thresholds, the mobile app and in-unit’s LED display system alerts you of undesirable events. This alert system helps you better allocate resources to avoid unplanned downtime and asset failure. The data can be exported for analysis to help you understand your equipment’s operation and take preventative actions to extend productivity.

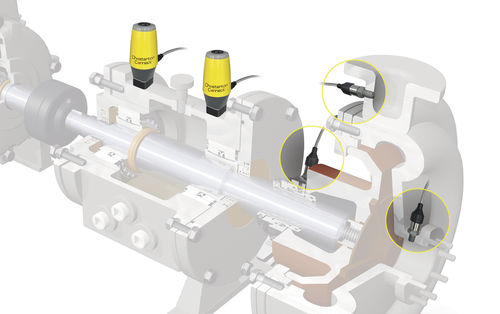

Applications: For use on pumps, mixers, agitators, and many other types of rotating equipment

Features

Install and configure easily
Detect process instabilities earlier
Prioritize equipment maintenance more easily
Access your data securely
View multiple sensors in one mobile app
Extend unit life easily with replaceable battery

Specifications

Operating Parameters - ​
Pressure sensor limit - 68 bar g (1000 psig)
Temperature limit (body) - -20°C - 85°C (-4°F - 185°F)
Temperature limit (sensor) - -20°​C - 125°C (-4°F - 257°F)
Vibration sensor - 3-axis accelerometer ±16g
Battery - 3.6V lithium thionyl chloride battery (replaceable)
Fitting - 1/4" NPT 316SS connection

Parameter Name	Parameter Value
Type	temperature pressure vibration
Applications	rotary machine process for pumps diagnostic battery for sealing
Domain	for the automotive industry for the construction industry
Configuration	mobile
Interface	wireless IoT
Other characteristics	data acquisition robust with visualization system multi-parameter
