Temperature monitoring system 4H-SMB

Temperature monitoring system 4H-SMB

Temperature monitoring system 4H-SMB

About


To revolutionize the thermosalinograph data quality on ships

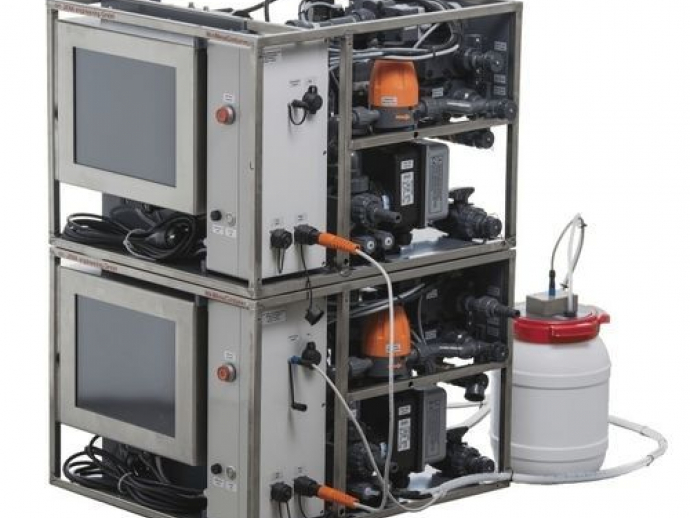

The combination of two SMB measuring continuously physical parameters of surface water leads to high efficiency and accuracy of data. The boxed flow‑through sensor system works in master‑slave mode with one substituting the other during automated cleaning cycles.

This redundant system ensures steady measurements without any disturbances of bio‑fouling and it additionally gives the opportunity for continuous high quality management for accurately validated data. The cyclone‑shaped bin for sensors also facilitates an effective automatic cleaning. Because of its compact construction transporting and handling of the ‑4H‑SMB is very easy. Equipped with commonly used interfaces the ‑4H‑SMB enables communication with every (research) vessel.

This System is a joint development with the Leibniz-Institut für Ostseeforschung Warnemünde (IOW).

Benefits

continuous data recording
autonomous flow-system
low maintenance
automatic cleaning system
2 systems in master‑slave mode for continuous data during cleaning cycles



PARAMETERS

Parameter Name Parameter Value
Type
  • temperature
  • sonic velocity
  • conductivity
Applications
water
Configuration
compact
Other characteristics
  • continuous
  • multi-parameter
