About
-DIN Rail or surface mountable
-Narrow 22.5mm module width
-Short Circuit Proof Inputs an outputs
-Wide operating temperature range
-CE Mark Compliant
-500Vac Isolation Input/Output

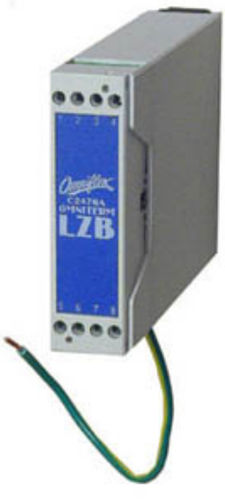

Omniterm LZB Input 2 Potential Free Contacts. Two Solid State Outputs with surge protection. Surge Current discharge protection 10kA 8/20μs nominal. Isolation 1500V Input to Output. Powered from 10 to 30Vdc.
The OMNITERM LZB is a dual input field contact interface module designed to protect RTU and PLC installations from external factors such as lightning surges, ground loops and wiring faults.
This module includes a fully specified surge arrestor, a signal isolator and a high side output driver allowing you to combine all three functions into a single module.
Forming part of OMNIFLEX' extensive OMNITERM range of industrial instrumentation, the OMNITERM LZB is designed to be DIN rail or surface mounted and is a space saving 22.5mm wide, or 11.25mm per channel.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Applications |
temperature
|
| Mounting |
|
