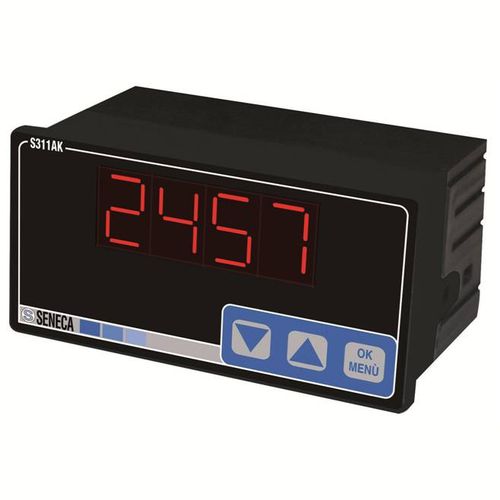

The S311AK-4-L can read voltage (0-10 V) or current (0-20 mA) signals with or without loop powered measure. All parameters and display configuration can be set by menu. The input will be shown and scaled on 4 digit display according to the setup. S311AK-4-L has an excellent resolution, precision and temperature stability. The compact dimensions allow to improve the assembly in electrical switchboard.

Description: - 4 digit display with I/V analog input, high accuracy class
Accuracy: - 0,05%
A/D converter: - 16 bit
Protection degree: - IP65
Thermal drift: - 0,005%/°K
Max power consumption: - < 0,9 W
Loop power supply: - yes
Power supply: - 10-40 Vdc, 19-28 Vac
Input type: - mA, V
Display: - 4 digit, LED
Dimension: - 96x48x40 mm
Programming: - Front key menu

Parameter Name	Parameter Value
Measured value	temperature, voltage, current
Display	digital
Type	panel-mount
Other characteristics	compact precision analog input
