The OMB 200/300/500UNI model series are simple bargraphs designed for maximum efficiency and user comfort while maintaining their low cost.
The OMB 200UNI type is a multifunction instrument with the option of configuration for 5 different types of inputs easily configurable in the instrument menu.
The instrument is based on a single-chip microcontroller with A/D converter, which secures good accuracy, stability and easy operation of the instrument.

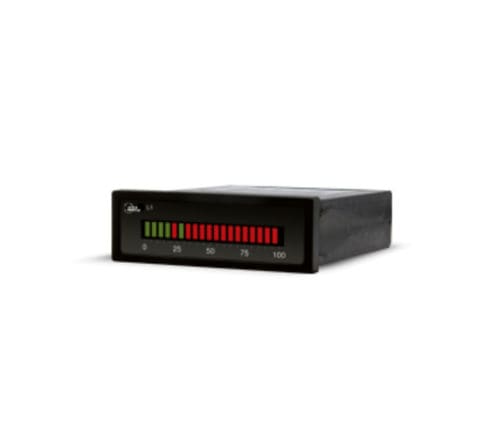

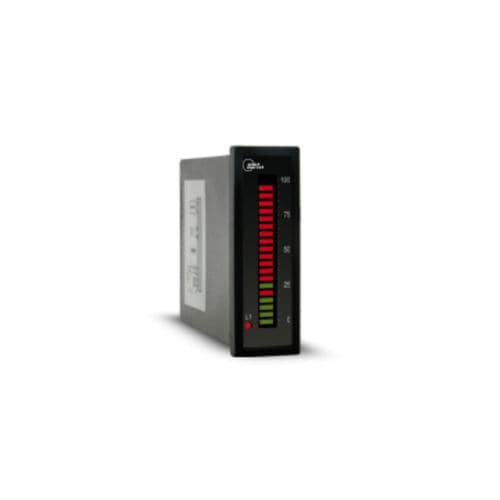

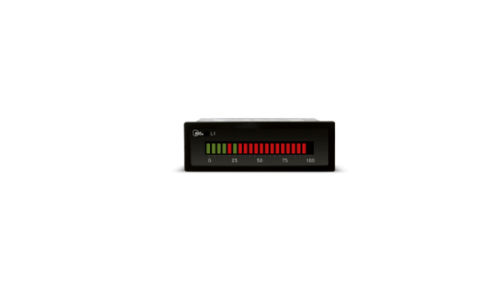

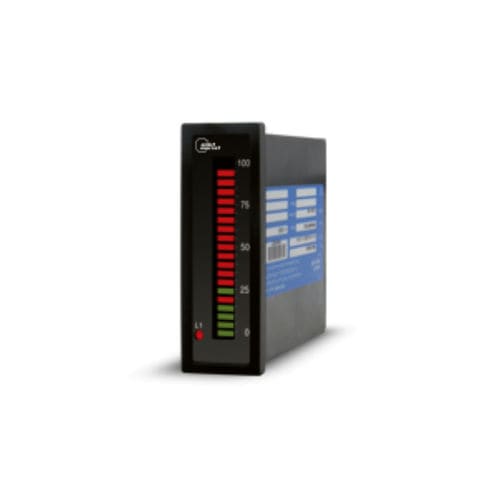

By selecting the mode of insertion of the front plexiglass (reverse/face) you may choose the required printing of scale for vertical or horizontal design of the instrument.
three color bargraph - 20 LED
multifunction input (PM, OHM, RTD, DU)
digital filters, linearization
size of DIN 72 x 24 mm
power supply 10…30 VDC/24 VAC
Options
comparator
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Measured value |
temperature, height, resistance
|
| Display |
|
| Type |
panel-mount
|
| Other characteristics |
multifunction
|
