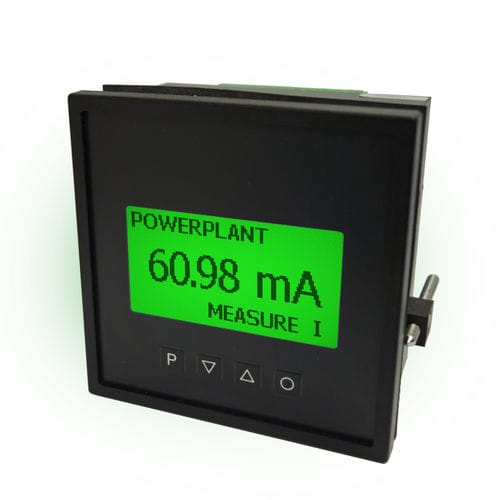

Our new indicator type ML2-2 is desigend for the acquisition of sensor signals and the presentation on a LCD display with all graphic features and coloured backlight. Via 4 buttons or optional via PC-Software, it is adjustable for different kind of applications. The sensor signal can be signal of voltage 0-10 VDC or current 0/4-20 mA, a resistance thermometer, a thermocouple or a pulse signal. As option, the conditions of the sensor signal can be evaluated via 1 analog output 0/4-20 mA, 0-10 VDC, 2 changeover contatcs or 1 interface RS232/RS485. Actions like e.g. TARA or Hold etc. can be operated via a digital input. This indicator comes with a buzzer alarm for the audible signalling of an error status and is suitable for a voltage supply of 100-240 VAC/DC or 10-40 VDC/18-30 AC. Available in a housing size of 96x96 mm.

Parameter Name	Parameter Value
Measured value	temperature, DC, DC voltage, frequency, speed
Display	4-digit LCD
Type	panel-mount
Other characteristics	easy to install analog output 4-20 mA RS-485 RS-232
Applications	for Pt100 probe for Pt1000 probe
