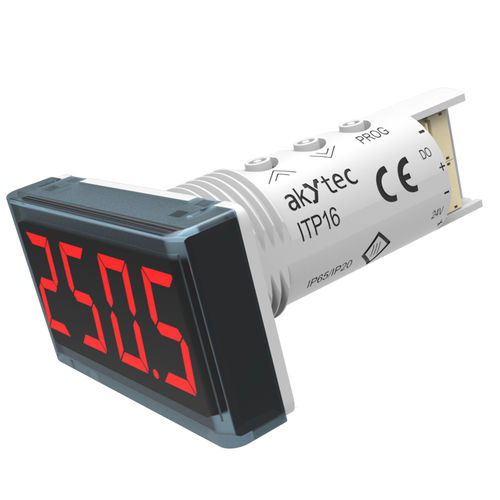

The ITP16 is a temperature indicator for monitoring and control of industrial processes. This display features a digital output and a configurable analog input. The device can process linear voltage signals, signals from various RTDs (Pt100,Pt1000,and others) or thermocouples (K, J,and others). The NPN transistor output can control a load up to 200 mA / 42 V DC, which makes it possible to implement on-off control. This output can also be used as an alarm output

This device has a compact, standardised design and fits into a standard 22.5 mm borehole for signal lamps. This provides quick and easy installation and many displays can be accommodated in a control cabinet door or on a panel

The ITP16 is a temperature indicator for monitoring and control of industrial processes. This device has a compact, standardised design and fits into a standard 22.5 mm borehole for signal lamps. This provides quick and easy installation and many displays can be accommodated in a control cabinet door or on a panel

This display features a digital output and a configurable analog input. The device can process linear voltage signals, signals from various RTDs (Pt100, Pt1000, and others) or thermocouples (K, J, and others). Before displaying, the input signal can be filtered if needed. There is also an optional square root function available. The NPN transistor output can control a load up to 200 mA / 42 V DC, which makes it possible to implement on-off control. This output can also be used as an alarm output

The process indicator ITP16 supports an alarm function. If this function is on, the display starts blinking with the frequency of about 2 Hz when the process value exceeds the set points

Parameter Name	Parameter Value
Measured value	process, temperature, voltage, frequency
Display	digital
Other characteristics	compact analog input blinking square transistor output
Applications	alarm
