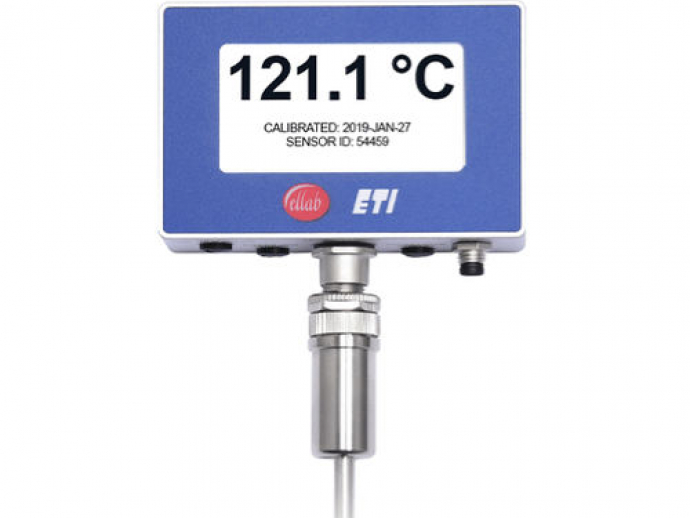

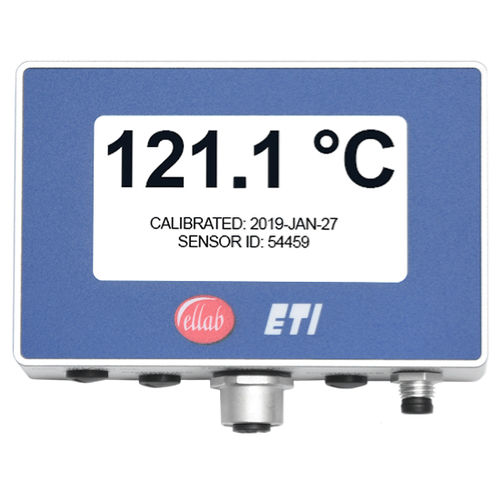

Ellab Temperature Indicator
ETI - Indicator
The ETI Indicator is a high quality digital temperature-indicating device designed for displaying and documenting the processing temperature in retorts. It complies with FDA 21 CFR Part 113, and it is ideal for thermal processing of low-acid canned foods. The ETI Indicator has a digital display that is easy to read, offers an accuracy of +/- 0.1°C, and does not constitute a potential source of mercury contamination.
Compliant with FDA 21 CFR Part 113
• FDA compliant alternative to mercury-in-glass thermometers
• Dual interchangeable sensor
• NIST traceable (or equivalent) calibration certificate
• Rechargeable backup battery
Key Features and Benefits
Pt1000 Sensing Elements
ETI Indicator
Main Unit Operating Range: 0 to +70°C / +32 to +158°F
Sensor Operating Range: -100 to +150°C / -148 to +302°F
Calibrated Temperature Range: 0 to +140 °C / +32 to +284°F
Accuracy: ± 0.1°C / 0.18°F
Resolution: ± 0.1°C / 0.1°F
Probe & Sensor: Intelligent 6 mm Diameter Stainless Steel Sensor With Two Independent Pt-1000
Sensing Elements and A/D Converters
Environmental: 0 – 90% RH, non-condensing
Ingress Protection Code: IP67
External Power: 7 to 30 V DC
Battery Backup: Internal, Rechargeable, 8 Hour
Display Update Rate: 1 Second
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Measured value |
temperature
|
| Display |
digital
|
| Other characteristics |
battery-powered
|
| Applications |
for Pt1000 probe
|
