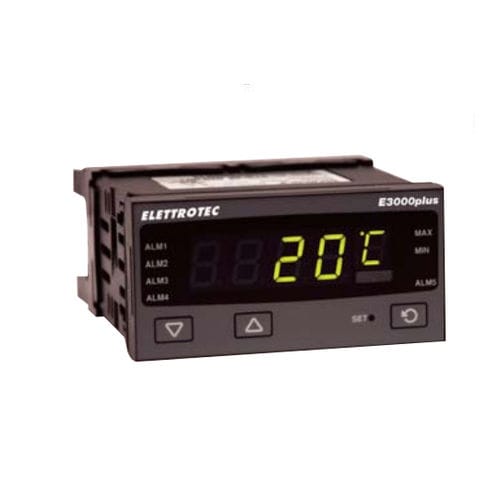

E3000 PLUS – DIGITAL INDICATOR
Power supply100 to 240V 50/60Hz
Display 4 digit 13mm high display red, green or red/green (colour change on alarm)
Input DC Linear, Thermocouple, RTD
Accuracy ± 0,1% of input range, ± 1 LSD (T/C CJC better than 1°C)
Alarm options Single alarm relays: contacts SPDT 2 Amp resistive at 240V AC Dual alram relays: 2 x SPST contacts with shared common; 2 Amp resistive at 240V AC
Output 0/20mA – 4/20mA – 0/10V – 2/10V - 0/5V
Engineering units °C/°F LED; labels for 27 other common units
Temperature 0 to +55°C (-20°C to 80°C storage); 20% to 95% RH non-condensing
Front panel protection IP66 (behind panel protection IP20)
Absorbed power 7.5VA
Password Configurable PIN code
Size 96x48x100
Approvals and Certification CE
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Measured value |
temperature
|
| Display |
4-digit
|
| Type |
recessed
|
| Applications |
for thermocouples
|
