About
-Intrinsic safety certification.
-Large non multiplexed displays, models with:
4 digits: 34mm high
5 digits: 29mm high + bargraph
-IP66 GRP or Stainless Steel enclosures
-'E' models have separate terminal compartment
--40°C to +70°C operation
-Internal calibrator
-Root extractor and lineariser
-Tare function
-Optional:
Backlight - may be loop or separately powered
Alarms
Scale and tag labelling for no additional charge
Engraved Stainless Steel legend plate
Product details

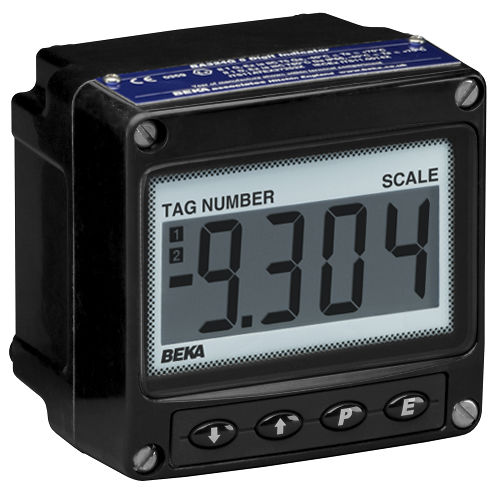

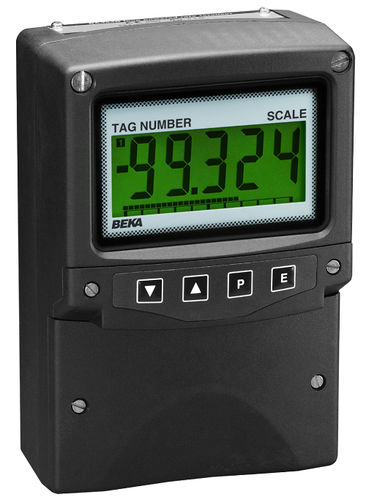

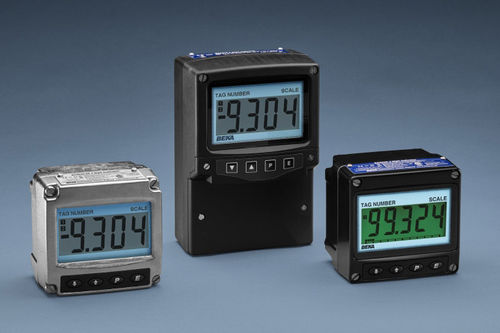

These fourth generation intrinsically safe 4/20mA loop powered indicators have large high contrast displays with a very wide viewing angle. Operating over an extended temperature range they contain many standard features previously only available as options. Extensive thermal and vibration testing provides maximum reliability supported by a three year guarantee.
No additional charge is made for factory calibration or for scale and tag marking, although the indicators can easily be recalibrated on-site.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Measured value |
temperature
|
| Display |
digital
|
| Type |
panel-mount
|
| Other characteristics |
|
