• Moving coil for analogue display of electrical values
• Pivot and moving coil with magnetic core system
• Input 0...20 mA or 4...20 mA
• DIN size 96 x 96 mm or 72 x 72 mm

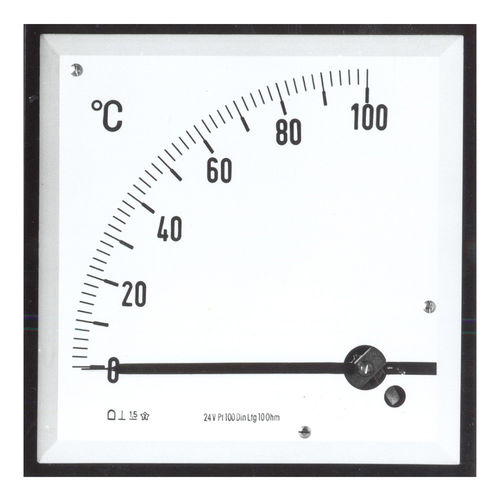

Analog indicator AQD DIN-sized 96 x 96 mm or the AQ72 DIN-size 72 x 72 mm
for analog display of electrical quantities, that are shown as a 0...20 mA or 4...20
mA signal.
TECHNICAL SPECIFICATIONS:
Operating Mode: Measurement Mode & Display
Measured material: Current
Measuring system: Top-mounted turntable with core magnet system
Measuring unit: mA
Measuring range: 0 … 20 mA or 4 … 20 mA
Innenwiderstand: Approx. 3 Ω
ACCURACY / ERROR LIMIT:
Measuring accuracy: 1.5% of the scale
PHYSICALLY:
Housing: plastic
Dimensions: AQD: 96 x 96 mm; AQ72: 72x72mm (WxHxD)
Connection: Screw clamps with clamp
Weight: Approx. 250 g
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Measured value |
temperature
|
| Display |
analog
|
| Other characteristics |
4-20 mA
|
