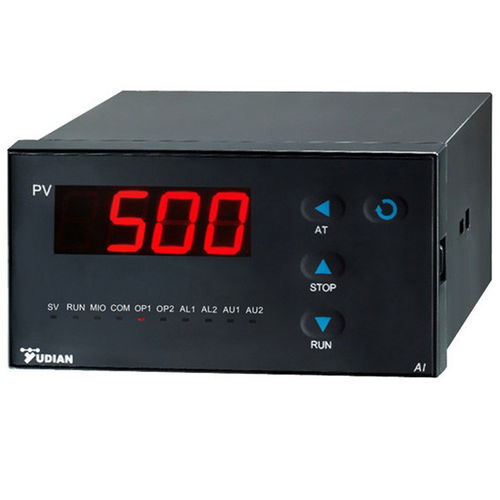

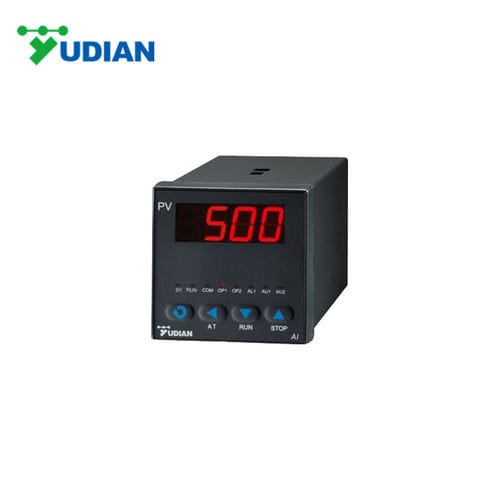

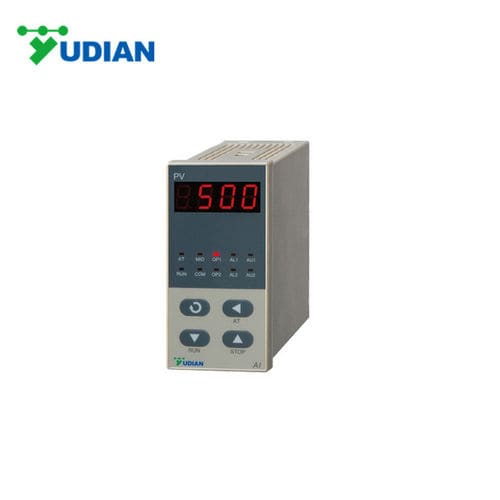

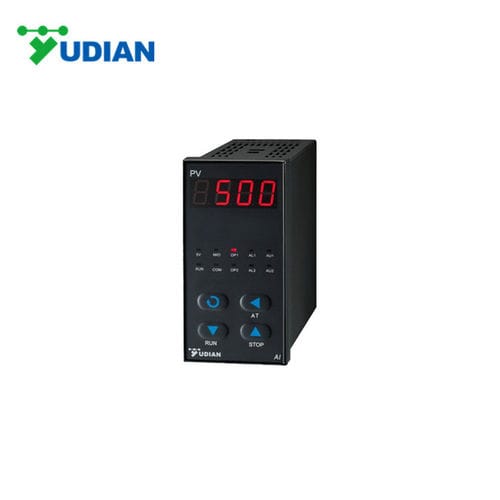

Temperature indicators are installation instruments which can process signals from temperature sensors and show them on the display. Temperature indicators enable easy and economic valuation of resistance sensors, such as Pt100 or different thermo element types.

-Measurement accuracy:0.3%FS
-Single display, easy operated, maintenance free
-LED bar graph selectable for display
-Alarms output to different relays/share one
-Retransmission function supported
-Worldwide power supplies:110~240VAC, 24VDC, 50/60HZ
- Input Type: Thermocouple, RTD, Linear current, Linear voltage
-Standard Size: 96*96, 48*48, 72*72, 48*96, 96*48
-CE,RoHS,ISO9001 approved/certificated
-1 year' warranty

Parameter Name	Parameter Value
Measured value	temperature, universal, current, humidity
Display	4-digit LCD display with LED display
Type	panel plug-in
Other characteristics	programmable 4-20 mA with alarm modular
Applications	for machine tools for Pt100 probe for RTD sensors for temperature sensors for valves for marine applications for refrigeration circuits
