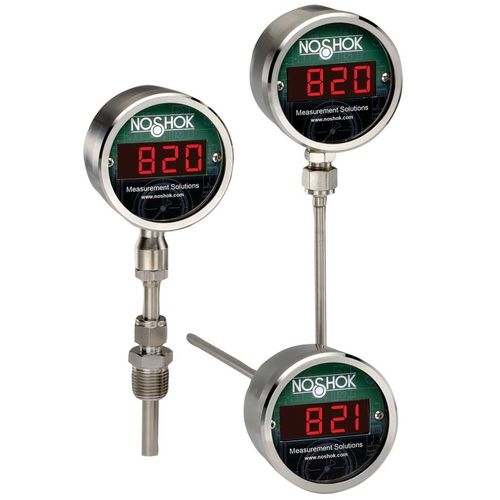

Large 4-digit LED display
Field re-programmable with optional PC interface module and software
Software includes a security feature to prevent accidental re-programming
4 mA to 20 mA programmable linearized signal output
Utilizes self-calibration feature for accurate and stable performance
Optional fully programmable switch output, relay or transistor
Utilizes PT100 Ω RTD Class A element for temperature sensing
M12 x 1 (5-pin) plug or 36” integral cable electrical connection
IP 65 / NEMA 4 rated environmental protection
All 316 Stainless Steel construction
Easy installation with various mounting configurations
Temperature ranges - Standard ranges from -325 °F to 1,100 °F (-200 °C to 600 °C) Customer rescalable with optional PC interface and software
Temperature sensor - RTD (PT100 DIN EN 60751, Class A)
Housing material - 316 Stainless Steel
Probe material - 316 Stainless Steel standard
Maximum pressure - 500 psig (on probe)

Parameter Name	Parameter Value
Measured value	temperature
Display	digital
Type	panel-mount
Other characteristics	programmable
