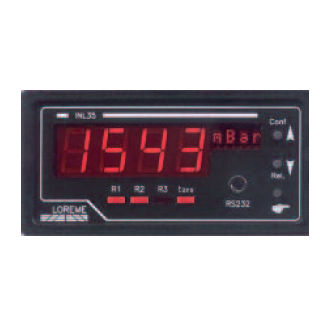

Process magnitude or temperature indicators.
Input configurable for current :
(active or passive, zero assessed 20mA, 4/20 mA or other)
For low-level voltage (mV up to 2000) or high-level voltage (V up to 200, (V10 V for instance), Potentiometer (200 ohm minimum), Stress gauges (5 V)
Frequency (0.25 Hz to 100 kHz), PT100 (2 or 3 or 4 wires) and thermocouples (B, E, J, K, R, S, T, N, W3 and W5)
Option 2 threshold alarm outputs by 260V/1A resistive inverter relay
Analogue measurement copy option, galvanic installation: current-configurable (active 0/20 mA, 4/20 mA or other) or for low-level voltage 0/10V (or other).
Display of four red digits + unit (configurable for °C, bar, rpm, Ipm)
General-purpose power supply, 20 to 265 Vac or DC.Connection to screw-on plug-in terminals

Parameter Name	Parameter Value
Measured value	temperature
Display	digital
Type	panel-mount
Applications	for strain gauges for thermocouples for potentiometers
