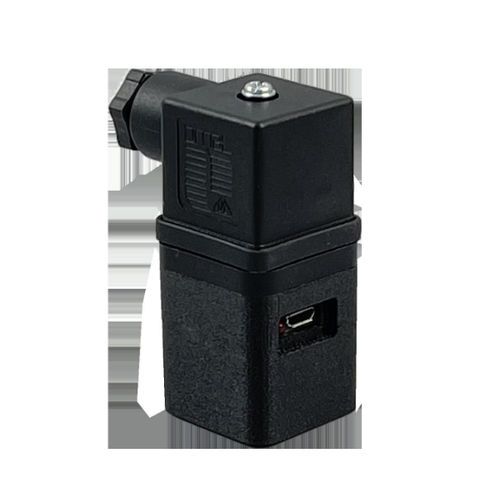

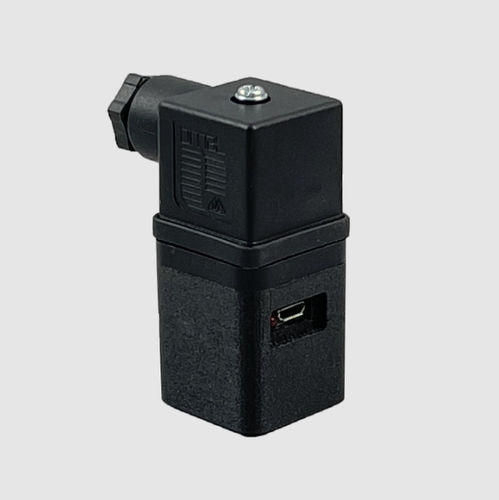

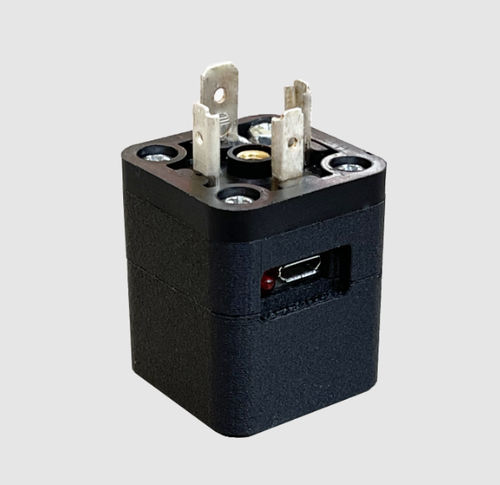

This is the new CF datalogger able to interpose itself between any measuring instrument with a 4-20 mA signal and your command line to read and acquire the data easily through your PC or your SMARTPHONE. This new FOX’s product transforms each din30x30 connector into a source of data to be saved and analyzed.

Retrofittable

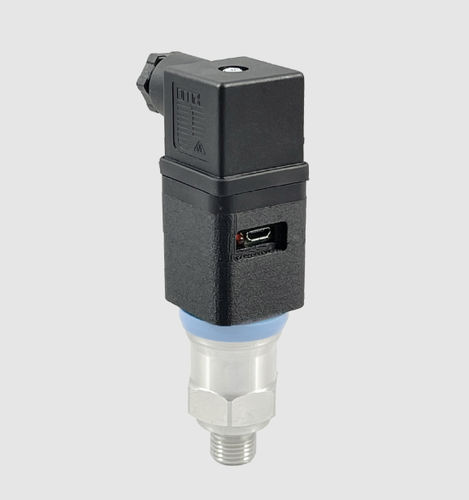

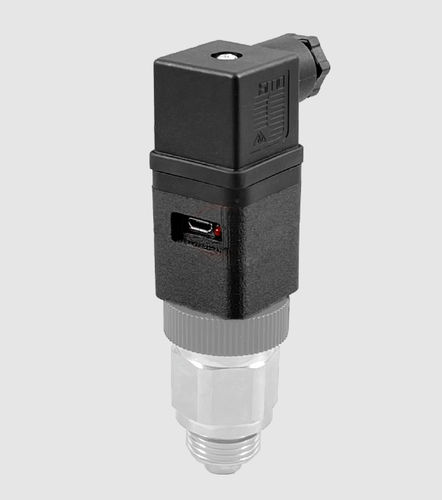

This new CF datalogger can be mounted on new or already installed measuring instrument with a 4-20 mA signal.

Main technical data
• Operating temperature: -25 ° C ÷ + 85 ° C
• Input and Output Signal: 4 - 20 mA
• Input and Output Connections: DIN43650 [M3 - “30x30 connector
• Connection for reading and recording data from smartphone and PC: Micro-USB type B with OTG cable
• Accuracy: ± 3% of full scale at 20 ° C
• Compatible with: Windows and Android

Parameter Name	Parameter Value
Measured quantity	temperature, 4-20mA
Connector type	USB, with PC interface
