About

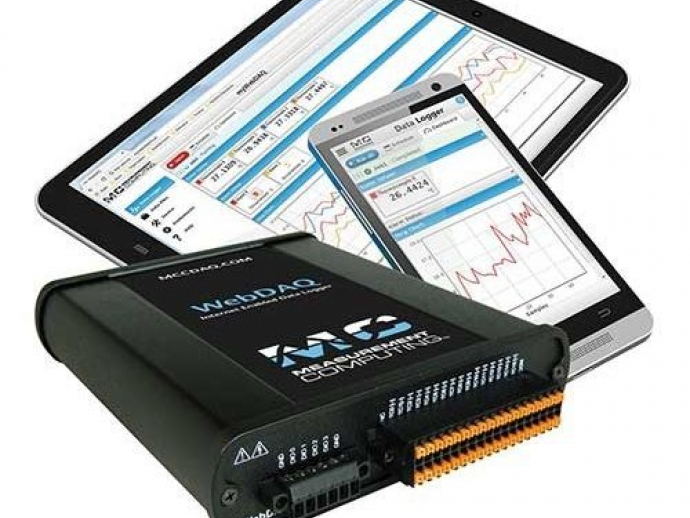

The WebDAQ 316 is a stand-alone, temperature logger designed for remote monitoring and control of thermocouple data.
• Log 16 thermocouple channels
• Built-in web server allows access from any device with a web browser
• WiFi support for wireless operation
• View data in real time or post acquisition
• Virtually unlimited data storage
• Easy, flexible task scheduling
• Four isolated digital I/O for triggers and alarms
• Alarming and notifications with email and SMS messaging
• Ability to export .csv data for Excel® and MATLAB®
• View entire WebDAQ Series
The WebDAQ 316 is a stand-alone, temperature logger designed for remote monitoring and control. All the intelligence is built into the WebDAQ, eliminating theneed for a PC or additional software. By using the embedded WebDAQ web server,users can easily configure simple or sophisticated applications, log temperaturedata, update digital outputs and/or send notifications based on alarm conditions,and view real-time data from any location and any device with a web browser.The WebDAQ 316 provides 16 isolated thermocouple inputs, and four isolateddigital bits that can be used as trigger inputs or alarm outputs. Housed in a heavyduty chassis, the WebDAQ 316 is rugged enough for industrial applications.
The WebDAQ Series embedded OS andweb server provides an all-in-one packagefor stand-alone data logging and alarming. Users can monitor and control theirapplications from anywhere with a webbrowser.The WebDAQ web server is optimizedfor both desktop and mobile use. Userscan perform data acquisition tasks fromphones, tablets and laptops with a single,intuitive user interface.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Measured quantity |
temperature
|
| Connector type |
wireless, WiFi
|
| Other characteristics |
|
