About

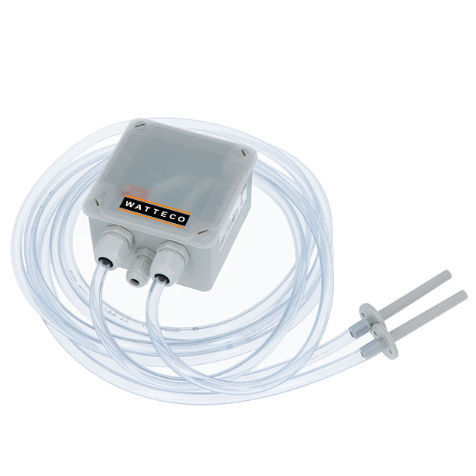

VENTIL’O measures air vacuum pressure in a Continuous Mandatory Ventilation (CMV) system or Air Handling Unit (AHU). Periodically or upon exceeding a configured threshold, VENTIL’O uploads its data via a LoRaWAN® network.
Also available: optional digital input to monitor equipment status.
Characteristics
• LoRaWAN®, Class A
• Easy to install and use
• Differential data compression
• Autonomy > 10 years
• Depression measurement
– Measuring range: 0 / + 500Pa
– Accuracy: -/+10Pa from 0 to 200Pa; -/+5.5% beyond this range
– Resolution: 1 Pa
• Room temperature measurement
– Measuring range: -20°C to +60°C
– Accuracy: -/+2°C between -10°C and +60°C
– Resolution: 0.1°C
• IP65 tropicalised
• Optional digital input to monitor equipment status
Applications:
• Remote monitoring of a ventilation chamber, of an air handling unit.
• Predictive maintenance through detection of the degree of fouling of the filter.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Measured quantity |
temperature, vacuum
|
| Connector type |
radio frequency
|
| Display |
without display
|
| Applications |
for leak detection
|
| Other characteristics |
air
|
