The 8 Bar Pressure Sensor has a pressure range of 20 mBar to 8 Bar Absolute, with a measuring accuracy of ± 0.25% Full scale. It can be used within the food, pharmaceutical and medical industries, for applications like retort sterilization, steam sterilization, ovens, environmental chambers etc.

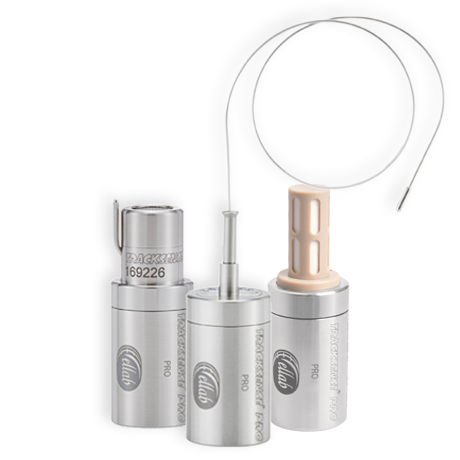

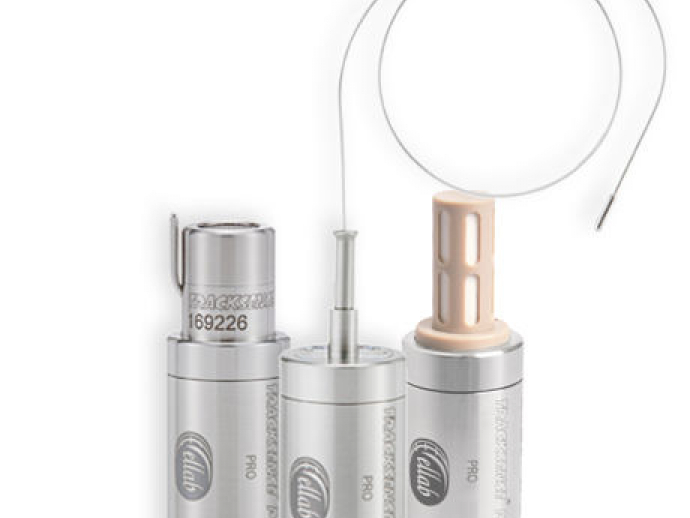

The high quality wireless TrackSense Pro data loggers consist of high resistant stainless steel and offers high-end technology that allows for stable and highly accurate measurements within different thermal processes.

The TrackSense Pro data logger series are equipped with an Interchangeable sensor option, unlocking several measuring parameters:

✓ Temperature
✓ Pressure
✓ Conductivity
✓ Relative humidity
✓ Vacuum
✓ Steam Penetration

The data loggers can easily be activated and read by the Multi reader station and combined with the Sky module for real time data via wireless communication.

Sensor with this logger configuration:
8 Bar Pressure Sensor

Pressure Measuring Range:
20 mBar to 8 Bar ABS (Calibrated 0 to +140 °C)

Measuring Principle:
Piezoresistive

Sensor Element:
Strain Gauge

Measuring Accuracy:
± 0.25% Full Scale

Parameter Name	Parameter Value
Measured quantity	temperature, pressure, relative humidity, conductivity, vacuum
Connector type	wireless
Display	without display
Applications	for pharmaceutical applications for food applications for medical applications for thermocouples high-temperature for autoclaves
Other characteristics	environmental
Memory capacity	120,000 unit
