Temperature data-logger Tinytag Ultra 2 series

Temperature data-logger Tinytag Ultra 2 series

Temperature data-logger Tinytag Ultra 2 series

About

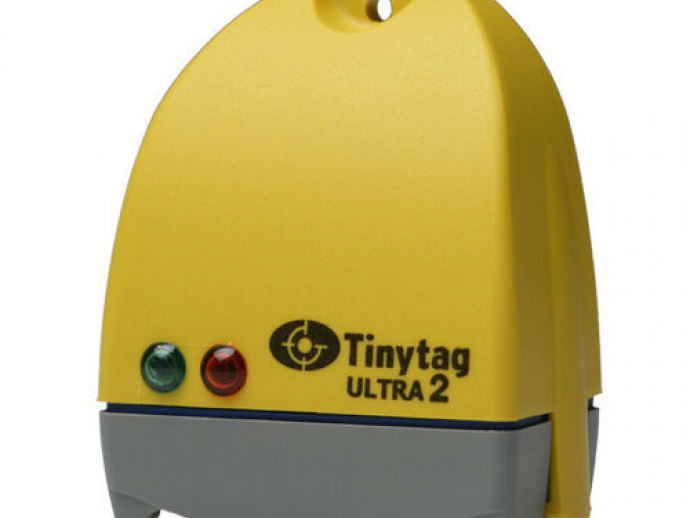

Tinytag Ultra 2 data loggers are specially designed for indoor temperature and humidity monitoring. They are ideal for monitoring the efficiency of heating, ventilation and air conditioning in offices, workplaces and domestic properties. They are also widely used to help assess the performance of building materials such as insulation, and help evaluate ‘before and after’ conditions in environmental refit projects. Please refine your search using the filter on the left of this page.

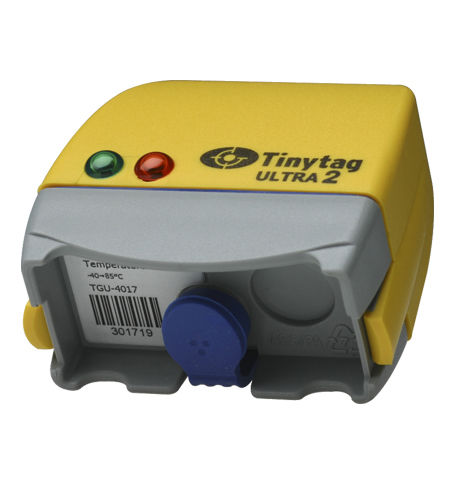

The TGU-4017 monitors temperatures ranging from -40 to +85°C using a built-in sensor. Like the rest of the Ultra 2 range, this accurate and reliable unit has a lightweight, splash-proof design and is primarily suited to indoor monitoring. However it can be used outdoors with appropriate protection such as a Stevenson Screen.
This logger requires Tinytag Explorer software and a USB cable (CAB-0007-USB).

Features
•Built-in temperature sensor
•Delayed start option
•Low battery monitor
•User-replaceable battery
•Splash-proof case (IP54)
•High reading resolution
•Fast data offload
•User-programmable alarms

The TGU-4020 monitors temperatures from -40 to +125°C using one of our range of thermistor probes, making it ideal for awkward to reach areas or where a fast response time is required. Like the rest of the Ultra 2 range, this accurate and reliable unit has a lightweight, splash-proof design and is primarily suited to indoor monitoring.
This logger requires Tinytag Explorer software and a USB cable (CAB-0007-USB).

Features
•Temperature logger using probe
•Delayed start option
•Low battery monitor
•User-replaceable battery
•Splash-proof case (IP54)



PARAMETERS

Parameter Name Parameter Value
Measured quantity
temperature, relative humidity
Connector type
USB
Display
without display
Applications
  • for monitoring
  • high-temperature
  • cryogenic
Other characteristics
  • air
  • single use
  • IP54
  • environmental
  • with integrated thermal collector
Memory capacity
28,000 unit, 32,000 unit
