Temperature data-logger TempU03

Temperature data-logger TempU03

Temperature data-logger TempU03

About


Product description:

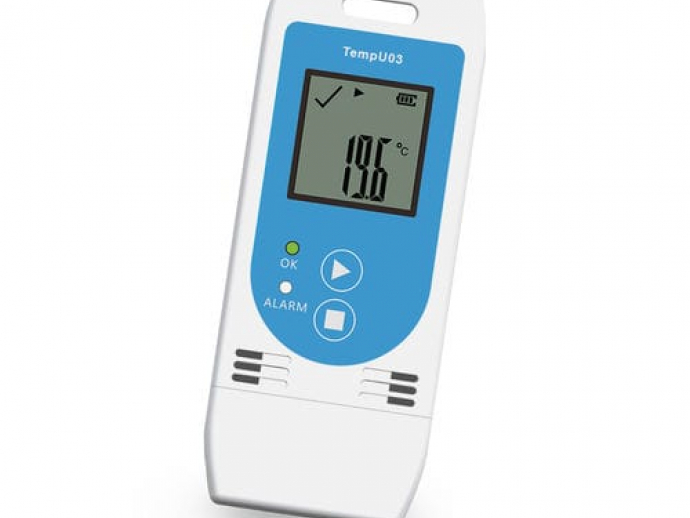

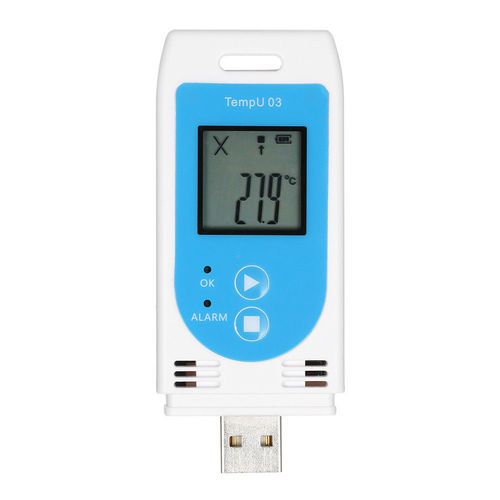

Tzone Multi-use USB temperature and humidity data logger TempU03 features a plug-and-play USB port interface. It allows for faster access to data collected in any cold chain management process. For carrying out the analysis, the TempU03 is connected directly to the USB port. The PDF and CSV reports are then automatically generated. This shows the temperature and humidity profile as well as all individual values plus statistical information. No hardware (such as cables or interfaces) or software required.

Main features:
* Designed to be Multi-use
* Temperature and humidity measurement as well as recording
* Statistics available on LCD screen
* No software required to retrieve data
* Automatically generates PDF report and CSV file
* Reprogrammable software for logging parameters, alarms and start dely

Technical Parameters:
• Dimension: 89mm*36mm*16mm
• N.W: 25g
• Temperature Range: -30℃ ~ +60℃
• Temperatrue Accuracy: ±0.5℃ (–20°C/+40°C); ±1.0℃ (other range)
• Temperature Resolution: 0.1 °C
• Data Storage Capacity: 32,000 readings
• Shelf Life / Battery: 1 year (replaceable)
• Startup Mode: Button or software
• Temperature Alarm: >8℃ or <2℃ (standard, Optional)
• Alarm Delay: 10 mins (standard, Optional)
• Start Delay: 30 mins (standard, Optional)
• Report Generation: Automatic PDF and CSV report



PARAMETERS

Parameter Name Parameter Value
Measured quantity
temperature, relative humidity
Connector type
USB
Display
with LCD display
Applications
  • for monitoring
  • for food applications
  • storage
  • for logistics
  • for refrigerators
  • for cold chain monitoring
  • for freezers
  • for vaccines
  • for pharmaceutical applications
  • for medical applications
Other characteristics
  • programmable
  • battery-powered
  • portable
  • stand-alone
  • high-accuracy
  • cost-effective
  • with automatic report generation
  • EN 12830
  • high-resolution
  • low-consumption
Memory capacity
32,000 unit
