About

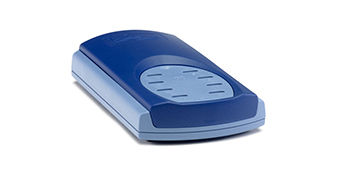

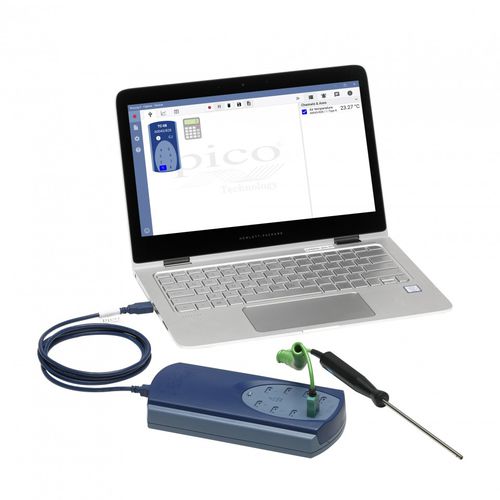

Temperature measurement and recording with the TC-08 is very easy — simply plug the TC-08 into a USB port on your computer, plug in your thermocouples, and you are ready to go.
• 8 channel thermocouple data logger
• Measures from –270 to +1820 °C (–454 to +3308 °F)
• High resolution and accuracy
• Expandable to 20 units / 160 channels
• Supports all popular thermocouple types
• Fast sampling rate — up to 10 measurements per second (including CJC)

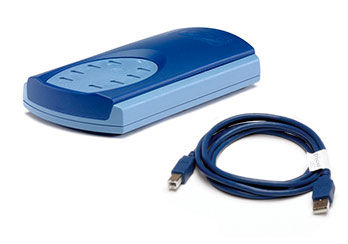

• USB connected and powered
• PicoLog 6 for Windows, macOS and Linux data logging software included
• PicoSDK drivers for Windows, macOS and Linux included
Wide temperature range
The TC-08 thermocouple data logger is designed to measure a wide range of temperatures using any thermocouple that has a miniature thermocouple connector. Pico supply a wide range of suitable thermocouples (see Accessories).
All popular types of thermocouple are supported, allowing an effective temperature range of –270 to +1820 °C (the actual temperature range depends on the thermocouple being used).
The built in Cold Junction Compensation (CJC) circuit can also be used as a 9th channel to measure room temperature.
Fast and accurate temperature data acquisition
With the TC-08 thermocouple data logger your temperature measurements can be made both fast and accurately.
The short conversion time of the TC-08 means up to 10 temperature measurements can be taken every second (cold junction compensation counts as an additional measurement), while the high (20-bit) resolution ensures that the TC-08 can detect minute changes in temperature.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Measured quantity |

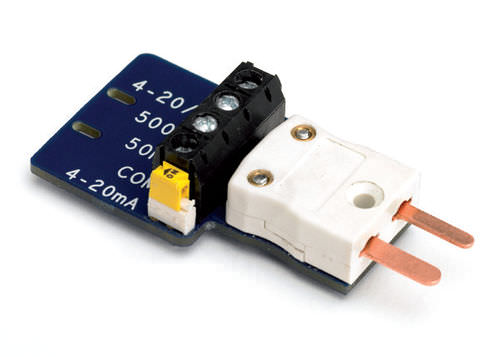

temperature, 4-20mA
|
| Connector type |
USB
|
| Display |
without display
|
| Applications |
for thermocouples
|
| Other characteristics |
|
