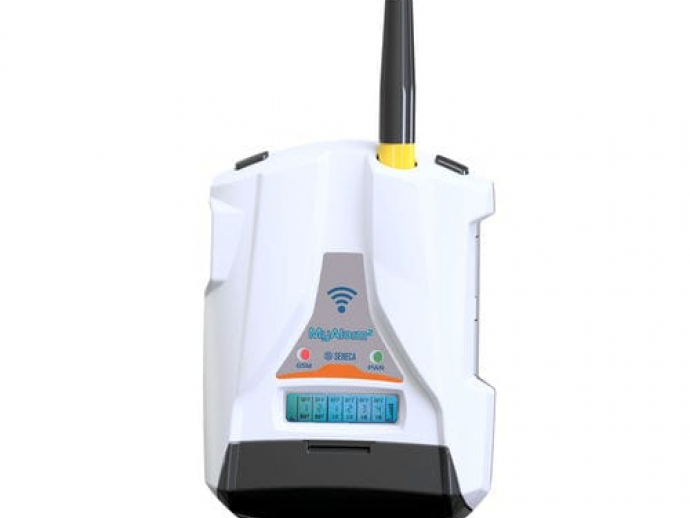

MyAlarm2 is a control unit designed for remote control of houses, buildings, plants, production machines or remote sites, via GSM or SMS. The BASIC version MY2B includes NTC sensor, 4DI, 2AI, 2DO (optional) and data logger functions. The unit can receive commands via SMS or ringtone (0 cost), send action or alarm notifications via SMS or EMAIL(*) and send logs via FTP or Email(*).

You can interact with MyAlarm2 also with timed commands using any GSM phone/device or smartphone. For Apple and Android devices is available the SENECA SMS app. This app provides buttons to facilitate the sending of string commands and their customization via predefined templates.

Applications typical of MyAlarm2:
- management of automatic gates/switching gates
- irrigation systems
- boiler control
- timed automation
- electrical continuity of the systems
- temperature detection
- energy consumption detection
- gas leak detection

Power consumption - 3,5 W (max)
Protection degree - IP20
Rechargeable battery - Li-On (1.000 mAh), lifetime from 8 to 16 h
Embedded NTC Sensor - Yes
Status LED - Power supply
GSM / GPRS activity
Device status
Available functions - Pre-set scenarios
Datalogger
Commands / SMS alarms / Ringing
Zero cost ring controls
Incremental alarms
Email management
Phonebook for up to 250 contacts
Fast / timed controls
Management of counters and timers
SMS and temperature management app
Up to 10 timers
Digital inputs - Nr. 4 inputs type REED Contact, PNP, Pulscap, relay freq. Max 30 Hz
Nr. 4 counters
Nr. 10 timers
Analog inputs - Nr. 2 inputs configurable in:
Current 0...20 mA (max impedance 60 Ω)
Voltage 0...30 V (max impedance 100 kΩ);
resolution 16 bit and accuracy 0.1% f.s.

Parameter Name	Parameter Value
Measured quantity	temperature
Connector type	USB, GSM / GPRS
Display	with screen
Other characteristics	programmable
