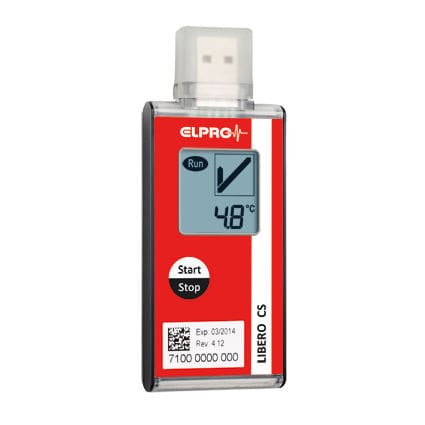

Multi-level PDF Logger with internal NTC probe, single use, up to 8 temperature alarm zones, alarm on MKT and logging time Delivered in boxes of 40 pieces Connection: USB, generates PDF with alarm statistics and graph Expiry date according to label (auto-expiry)

Characteristics

• Product type:Datalogger
• Logger/module type:PDF-Logger
• Probe type:Datalogger with NTC-Probe, internal

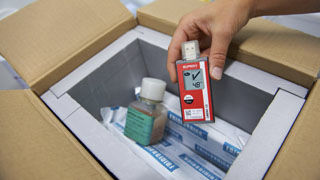

• Typical application area:Transport
• Measurement parameters:Temperature
• Measurement range temperature:-30 °C..+70 °C
• Measurement accuracy temperature:±0.4 °C [0.0 °C..+25.0 °C] / ±0.5 °C [-10.0 °C..-0.1 °C]; [+25.1 °C..+50.0 °C] / ±1.0 °C [-30.0 °C..-10.1 °C]; [+50.1 °C..+70.0 °C]
• Usage:Single Use
• Alarm:8 alarm levels, MKT and Duration
• Connectivity:USB
• Life time:12 Months
• Dimensions:96 × 37 × 11 mm (3.8 × 1.5 × 0.5 inch) / 38 g (1.34 oz)
• Material:ABS plastic material
• Protection class:IP 54
• Standards:WHO-PQS
• Certificates:Production calibration certificate, validation certificate

Parameter Name	Parameter Value
Measured quantity	temperature
Connector type	USB
Sensor type	NTC
Display	with LCD display
Applications	freight transportation
Other characteristics	programmable IP54 single use
Memory capacity	24,200 unit
