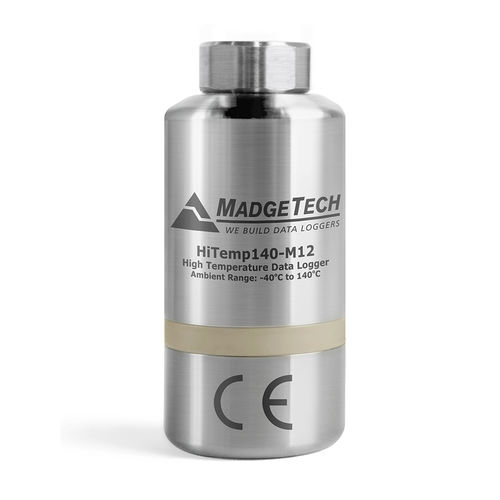

The HiTemp140-M12 is a high temperature data logger featuring an M12 probe connector. With the ability to change probes as needed, this device satisfies a multitude of application needs.

Compatible with a wide variety of M12 RTD probe styles, the HiTemp140-M12 is capable of measuring up to 850 °C (1562 °F) (probe dependent). The HiTemp140-M12 records and stores up to 43,690 time stamped readings and can be programmed for immediate start or delayed start up to 18 months in advance.

The HiTemp140-M12 is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.

*Body of data logger cannot exceed 140 °C (284 °F), but can extend to higher temperatures when used with MadgeTech’s thermal barrier options.

Parameter Name	Parameter Value
Measured quantity	temperature
Connector type	with PC interface
Display	without display
Applications	for monitoring high-temperature
Other characteristics	compact battery-powered stand-alone
