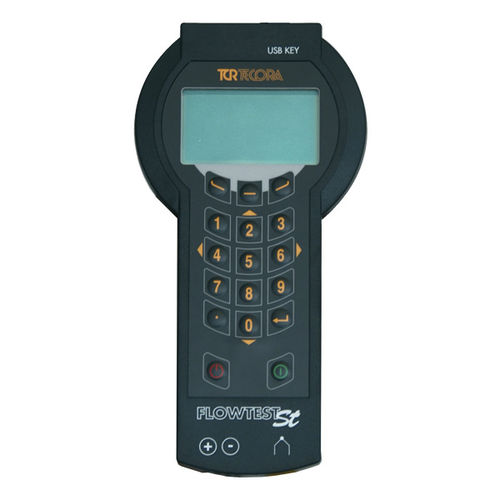

Flowtest ST is the TCR Tecora Digital Stack Gas Velocity and
Flow Meter
The Precision Measuring – Data Logger model Flowtest ST is dedicated to gas velocity, volumetric flow rate determination, and isokinetic measurements in stack

The instrument is housed in a compact and lightweight case; easy to set up and operate. It measures the gas velocity and
temperature through a Pitot tube and a thermocouple.
Thanks to a powerful microprocessor, it provides instantaneous calculation of the fluid-dynamic parameters displaying the specified parameters of the on-going measuring on a wide alphanumeric display.
An easy to use autoguided program is provided for the following measurements:

Continuous measurement;
Flow rate measurement;
Isokinetic sampling;
Constant flow sampling.
The measuring probe is realized in temperature and corrosion proof AISI 316 stainless steel.
It incorporates an “S” type Pitot tube and a thermocouple, that are protected and kept together by a graduated tube of 700 or 1300 mm standard useful length.


Main Features
Sampling point determination in duct;
Stack condition and normalized flow rate measuring in duct;

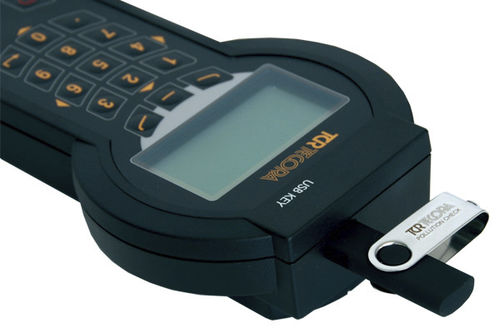

Memorization of gas velocity and temperature average values for successive printing, and data transferring to PC with presetting average intervals;

Parameter Name	Parameter Value
Measured quantity	temperature, flow
Connector type	USB
Display	with screen
Other characteristics	digital compact continuous
Memory capacity	250 unit
