High-performance 32 bit measurement data collector optimised for water level, temperature and conductivity measurement in ground and surface waters
XL ring memory for approximately 1.120.000 measurement data
Sturdy, sleek Ø22 mm stainless-steel housing for extreme conditions
High-quality 4-electrode conductivity measuring cell
Accurate, long-term, stable, ceramic-capacitive pressure sensor
NTC30 temperature sensor with 0.1°C accuracy

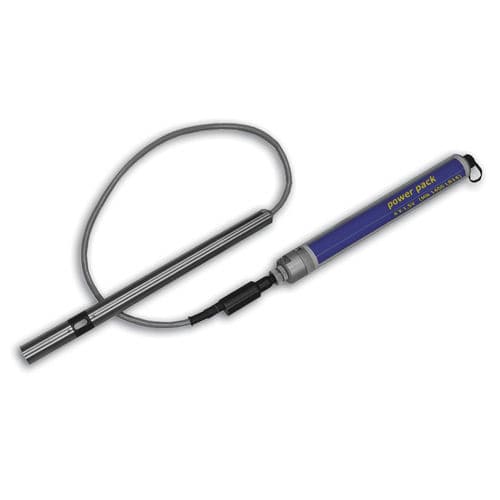

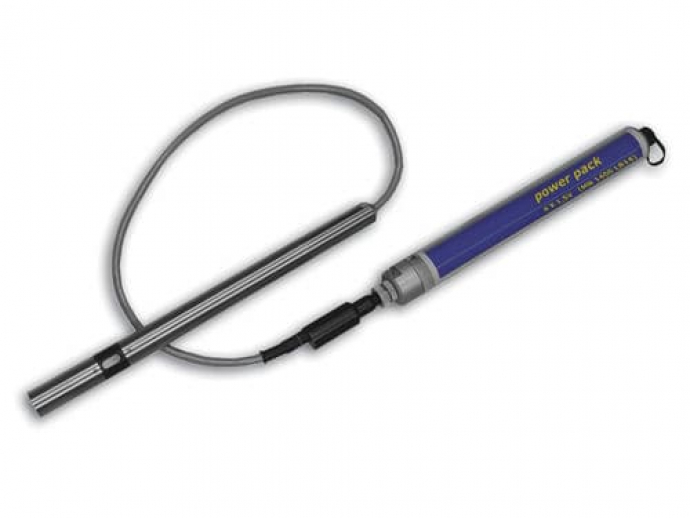

External power pack module with interchangeable 1.5V size C batteries
Operation with notebook, tablet, PC, smartphone or tablet via Bluetooth® (optional)
Expandable with data transmission module SlimCom
High-performance:
32 bit microprocessor with 16 MB of memory for 1,120,000 readings
Low maintenance:
Low operating costs, 1.5 V size C replaceable batteries, without the need to use tools (option: 3.6 V lithium batteries to maximise the service life)
Slim:

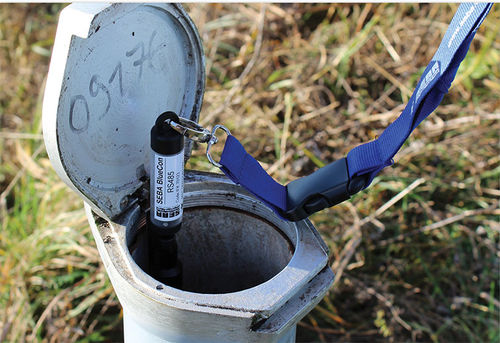

Installation using 1" tube diameter (probe)
Smart:
For each measurement task - a suitable measurement routine: single value measurement, average value measurement, event control (swell mode, delta mode), flow calculation (W/Q table, polynomial), calculation and storage of salinity, TDS value and water density.
Accurate and reliable:
Conductivity measurement electrode with automatic measuring range switching, for maximum resolution (0-0.2 mS/cm; 0.2-2 mS/cm; 2-20 mS/cm; 20-200 mS/cm)
Water level: 0.05 % Measurement accuracy (= 1 cm at 20 m measuring range)
Robust:
1.4539 stainless steel housing can also be used under extreme environmental conditions (landfill sites, contaminated sites, brackish water etc.)
