About
High-performance 32 bit measurement data collector optimised for water-level and temperature monitoring in ground and surface waters
XL ring memory for approximately 1,120,000 measurement data

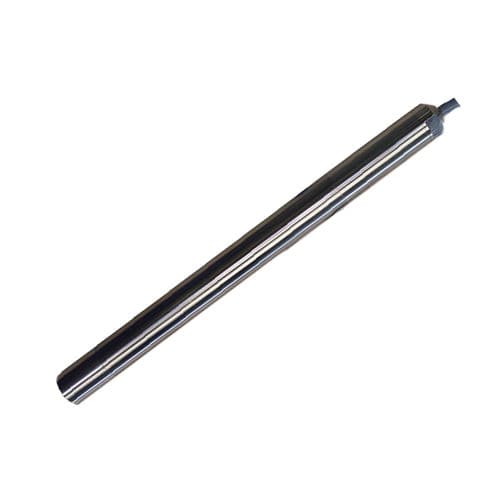

Sturdy, sleek Ø 22 mm stainless-steel case
Accurate, long-term stable ceramic-capacitive pressure sensor of a max. 300 m measurement range
NTC30 temperature sensor with 0.3 °C (standard) or 0.1 °C (option) accuracy
Replaceable lithium batteries for about 8-10 years service life
Operation with notebook, tablet, PC, smartphone or tablet via Bluetooth® (optional)
Expandable with data transmission module SlimCom
High-performance:
32-bit microprocessor with 16 MB of memory for 1,120,000 readings
Virtually maintenance free:
A battery change is not necessary, and so ongoing operating costs are not incurred.
Slim:

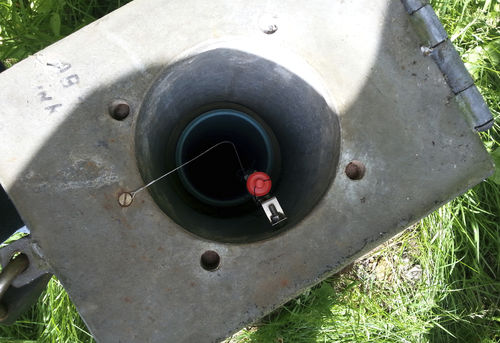

Installation using 1" tube diameter (probe)
Smart:
For each measuring task - a suitable measurement routine: single value measurement, average value measurement, event control (swelling mode, Delta Mode), flow calculation (W/Q table, polynomial).
Accurate and reliable:
Water level: 0.05 % Measurement accuracy (= 1 cm at 20 m measuring range)
A wide selection of ceramic capacitive pressure transducers from 0.2 bar to 30 bar
Temperature: 0.3 °C (standard), 0.1 °C (optional)
Robust:
Stainless steel housing 1.4404 (standard) and 1.4539 (option); can also be used under extreme environmental conditions (landfills, contaminated sites, brackish water etc.)
Flood-proof:
2-step, permanent flood protection up to 3 m water column
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Measured quantity |
temperature, pressure, water level
|
| Connector type |
RS-485
|
| Display |
without display
|
| Other characteristics |
|
