T-TEST K12 data acquisition unit with 16 overall channels to be integrated with a PC for real-time acquisition, display and recording of data from monitored tests performed in the field with displacement and pressure or load sensors.


• Low cost
• High precision
• Practical and handy case
• Maximum acquisition frequency 2 Hz
• Control unit-pc wireless communication system (optional) Internal battery operation, rechargeable at 6V (can also be used as a buffer if connected to the mains). The connection to the PC is made by means of a USB cable (supplied). The unit is enclosed in an IP67 reinforced container, easily transportable and the minimum sampling rate is 2 Hz with 16 bit resolution

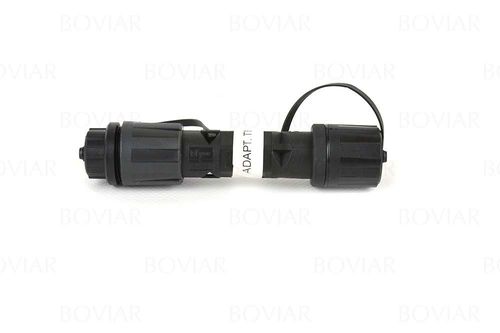

• N° 1 NTC type temperature sensor for measuring the ambient temperature or another type of sensor using the 4 – 20 mA adapter (included in the scope of delivery) The control unit also has additional 2 internal channels, dedicated to monitoring the supply battery and the internal temperature. The T-TEST software supplied allows the management of load tests (on structures: floors, poles, trusses and etc.) and other types of acceptance tests. The software allows the acquisition of data from the connected sensors, the display in real time by plotting the values ​​as a function of time and storage in files for subsequent processing. If the load sensor is not connected, the software allows you to manually enter the value of the load applied. To complete the management software, the K12 software is supplied for the representation of the “Force-Displacement”, “Pressure-Flow” graphs, etc.

Parameter Name	Parameter Value
Measured physical value	temperature
Number of channels	16-channel
Mounting	PC-based integrated
Options and accessories	USB real-time DSP wireless
