A compact and integrated data acquisition system for the monitoring and recording of process variables

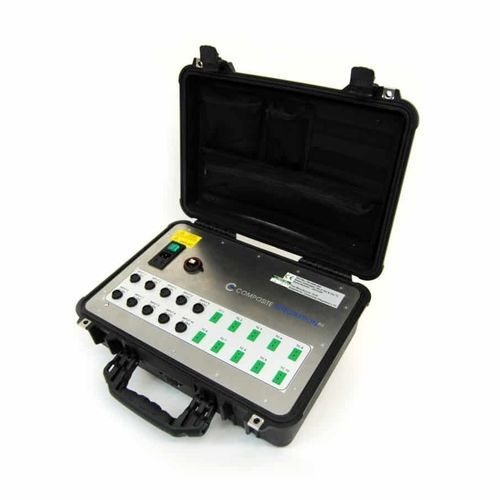

With a total of 20 channels for measuring both temperature and 0-10v analogue sensor outputs (In-Mould Pressure Sensors or linear transducers etc.), the CiDAQ system uses a ‘plug-and-play’ approach to capturing process data. A sophisticated, yet simple to use software interface allows for real time viewing of process information and recording of data in csv format. The unit is contained in a robust carrycase allowing for easy storage and straight forward deployment when needed.

System

System includes;

– 10 x 0-10V analogue inputs (24V excitation voltage)
– 10 x K-Type thermocouple inputs
– Sample rate of 1Ks/second
– USB connection to laptop/PC (computer hardware not supplied)
– Robust portable enclosure
– In-Mould Pressure Sensors (IMPS) compatible

Software Features

Data Acquisition Software Features;

– Quickly and easily acquire, view, and log data
– Configure device, channel, and acquisition options
– View data in any combination of scalar, strip, and block displays
– Export acquired data to a .csv file for interpretation and analysis using MS Excel
– Customize display size, location, and channel/trace colours
– Save the configuration to a file for later reuse and modification
– Supported operating systems: Windows® 10/8/7/Vista®, 32-bit or 64-bit

Parameter Name	Parameter Value
Measured physical value	temperature, voltage
Mounting	portable integrated
Options and accessories	USB
