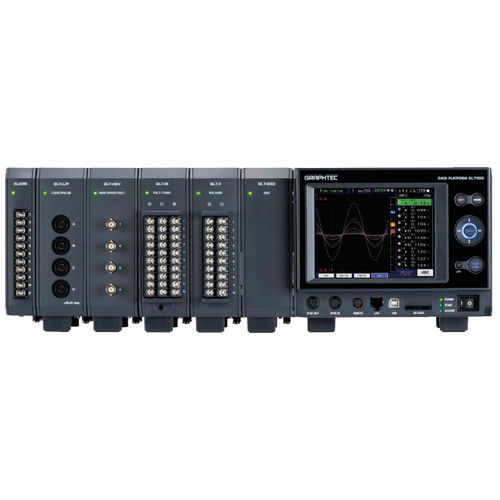

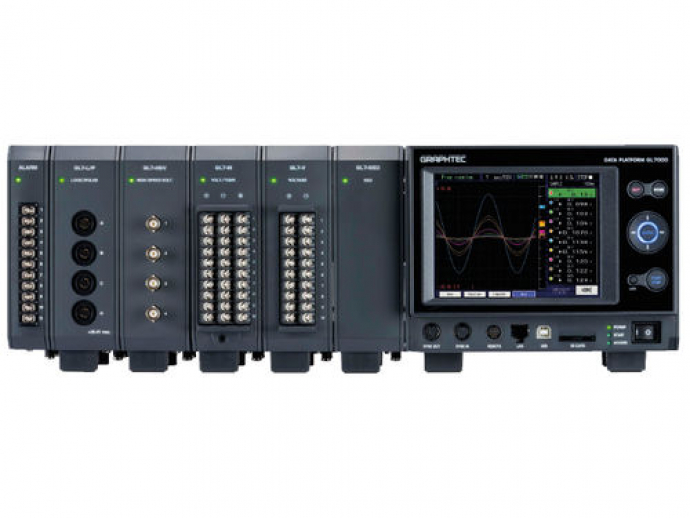

About the Data Platform GL7000 System
The new generation data acquisition unit can measure the desired signal according to the needs and can expand into other applications adding different amplifier moduls. It can be attached to a display module having a touch panel, used as a stand-alone unit or embedding into a system.

Key Features GL7000 System

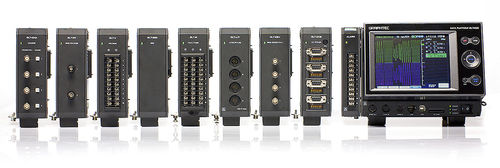

• 7 types of Input Modules for Voltage, Temperature, DC Strain, Vibration and Logic/pulse available
• 4 types of Function Modules: Display, SSD, Alarm, Voltage Output
• Up to 10 modules can be attached.
• Flexible module combination allows a wide variety of measurements
• Attaching the high-definition display module with touch panel allows both stand-alone operation and embedding into a system.
• 2 interfaces for connection to your PC: USB 2.0 and Ethernet
• 4 destinations to save the recorded data: build-in RAM, build-in Flash memory, SD memory card and SSD module.

Specifications
Model number
GL7000
Number of module
Attached to up to 10 modules (*1)
Number of input channels
Max. 112 channels in 1 of GL7000
External Input/Output signals (*2):
Input
Start/Stop, External trigger, External sampling, Auto balance (*3)
Signal type: Contact (relay), Open collector, Voltage
Output
Trigger, Busy (*3), Alarm (10 channels) (*4)
Signal type: Open collector (pulled-up by resistor 10 kΩ)
Trigger, Alarm function:
Trigger action
Start or stop capturing data by the trigger
Trigger repeat
Enabled (ON): Automatically re-armed for the next data capture function
Disabled (OFF): Data capture is completed in a single trigger

Parameter Name	Parameter Value
Measured physical value	temperature, voltage
Mounting	panel
Options and accessories	USB
