The DAS1800 can be configured for a wide variety of applications with slots for 10 input modules each supporting 4 or 8 measurement channels. Acquire data from any sensor with a voltage or current output (with shunt), or directly measure voltage, resistance, or temperature using thermocouples or resistance temperature detectors (RTDs).

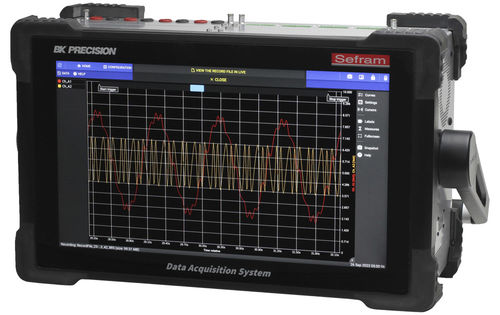

For capturing rapidly changing signals and transients, the DAS1800 can simultaneously measure and record up to 40 channels at 1 MSa/s/ch and stream the data directly to the solid-state drive. Weighing approximately 15 lbs (6.8 kg), the base unit is the lightest all-in-one system in its class. The DAS1800 features a large 15.6" Full HD touch screen display for easy setup and visualizing real-time or recorded data, and the optional internal battery provides up to 3.5 hours of battery operation for testing in the field.

The highly intuitive user interface of the DAS1800 makes it easy to use with a multitude of time saving features such as one finger scrolling, pinch and zoom, and a built-in sensor library. View measurements as real-time waveforms and numeric values on customizable dashboards. For viewing data on a PC, download the free DASpro software. For remote control, the DAS1800 supports web server and VNC connections.

Features and benefits
• Stream 40 channels at 1 MSa/s/ch
• Up to 80 analog inputs with D18-MUX8 multiplexed module
• Measure up to ±600 VDC
• 10 slots and 3 measurement modules available: Universal (4 ch), Multiplexed (8 ch), High Impedance (4 ch)
• Temperature measurements with thermocouples and RTDs

Parameter Name	Parameter Value
Measured physical value	temperature, voltage
Mounting	built-in
Domain	industrial
Options and accessories	USB resistance all-in-one
