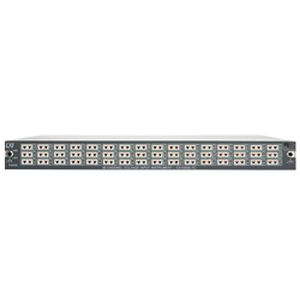

The EX1000A (pictured), EX1000A-TC, and EX1000A-TCDC are advanced full-featured thermocouple and voltage measurement instruments. The EX1016A, EX1032A, EX1048A, and EX10SC are advanced full-featured thermocouple and voltage measurement instruments.

A wide range of measurement types, including pressure, strain, temperature, position and voltage, can be performed using this instrument when combined with the EX10SC signal conditioning expansion chassis. Each input incorporates an independent signal conditioning path with software selectable filters for maximum flexibility.

Complete end-to-end self-calibration is provided for each signal path on a programmable basis. Self-calibration is simple and quick, and can be performed as often as desired.

With LXI complaint features like built-in LXI Trigger Bus and IEEE-1588 time-stamping, the EX1000A, EX1000A-TC, and EX1000A-TCDC support simplified distribution, synchronization and scalability for high-channel count applications. They can also be easily integrated with other platforms such as VXI and PXI.

The heart of any truly accurate thermocouple measurement system is the CJC implementation. These instruments combine multiple precision thermistors, a significant thermal mass, and careful parts placement to provide world-class measurement performance. Each temperature channel is configured with open transducer detection functionality, providing a continuous indication of the channel status. Open transducer detection can be activated or deactivated on a per-channel basis.

Parameter Name	Parameter Value
Measured physical value	temperature, voltage
Number of channels	multi-channel 16-channel 32-channel
Mounting	built-in integrated
Options and accessories	programmable
