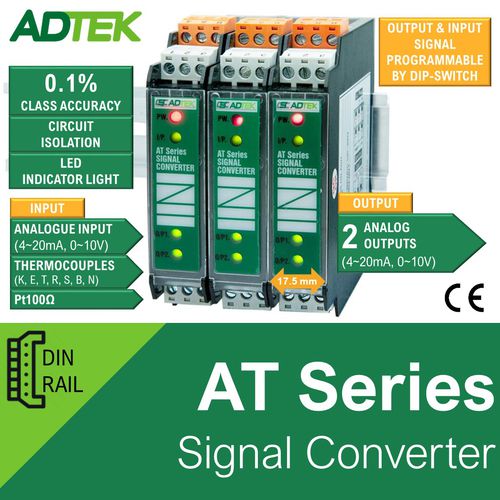

AT-TC2
Temperature Converter
AT2-TC Temperature(TC) Converter adopts MCU digital design. The thermocouple input type and temperature range of the converter can be changed through the setting software (AT2TC-Utility). It has both the flexibility of digital use and the convenience of analogy. Mainly used for conversion and isolation of temperature measurement.
This section slim design of the converter / distributor, in addition to providing two groups of signal output (Isolation) or 24V excitationsupply for the transmitter used, the switching power supply willprovide installation convenience. The top and designed power supply, input and output indicators and removable terminal blocks to facilitate on-site construction and working status view.
FEATURES:
- The high-precision temperature IC is used to make the ambient temperature compensation error value of the isolation converter in the full temperature range of operating temperature less than ±0.5℃
- Output for 0~5V / 0~10V / 1~5V / 2~10V / 4~20mA / 0~20mA changeable by dip switches and terminals
- 100mS high-speed response signal output, suitable for precision temperature control loop
- Dual different signals output available
- LED indications for power, input and output status
- The width of the isolation converter is only 17.5mm, and the installation method of standard 35mm rail
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
temperature
|
| Other characteristics |
|
