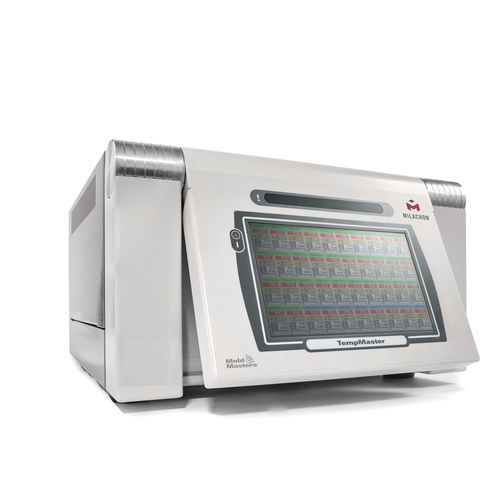

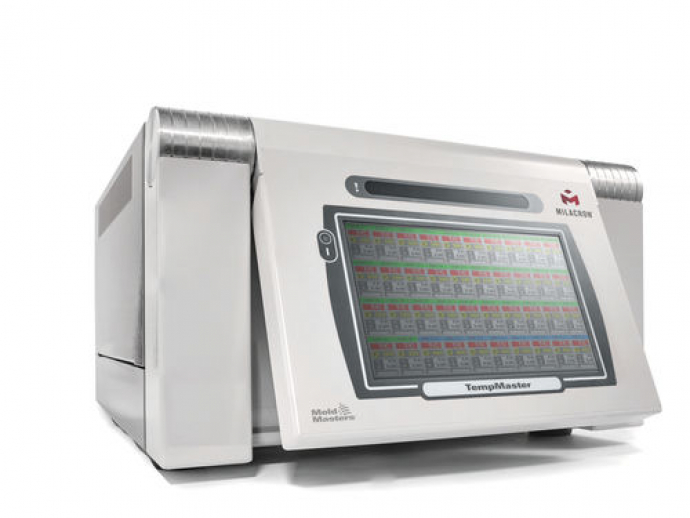

The M1 platform combines popular features with advanced APS Control Technology for precision control of up to 48 zones. Powerful performance in a compact unit. Optimize the performance of any hot runner system and unlock your operations full potential with TempMaster.

FEATURES

Large, Intuitive 7″ Touch Screen Color Display

Easily view, monitor and control multiple zones at once. More info.
Simple to set-up and operate.
Data displayed in real time.

Advanced Features & Settings

Excellent control and precision.
Achieve greater process stability.
Mold parts with higher quality and reduce scrap.

Compact Cabinet Dimensions

Preserves valuable space.
Up to 32% smaller than competitive systems of the same class.
Can be placed almost anywhere.

High Capacity Modular Control Card (6z-15A)

Reduces the number of cards required by up to 60%.
On-board heater and thermocouple fuses.
Eliminates excess wiring and improves accessibility.
Simple to access and maintain. More info.

IMM Communication (Optional)

Centralized alarm interlock.
Enhanced process control.
Prevents damage to equipment.

Display Size: 7" (178mm)
Control Algorithm: APS (Adaptive Process System)
Power Control: Phase Angle Burst Firing Modes (Time Proportional, Zero Crossing)
Temperature Display Resolution: 0.1° (C or F)
Power Response Time: 8.3ms at 60 Hz
Temperature Scale: °C or °F (Software Selectable)
Thermocouple: J or K-Type (Software Selectable)
Output Voltage (Max): 264 VAC
Supply Voltage: 200/240 Delta or 380/440V 3Ø Star
Languages: English, French, German, Spanish, Chinese, Japanese, Czech, Italian, Hungarian.

Parameter Name	Parameter Value
Display	with touchscreen
Type	technology programmable
Use	process hot runner
Other characteristics	auto-tuning compact modular advanced
Maximum temperature (°C)	0 - 472
