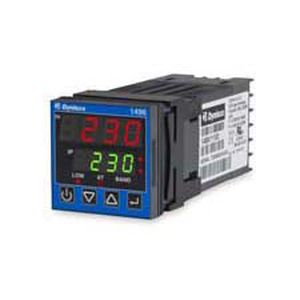

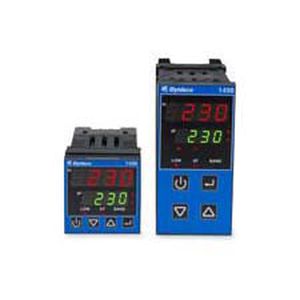

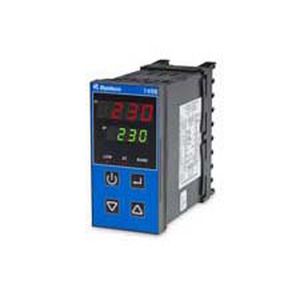

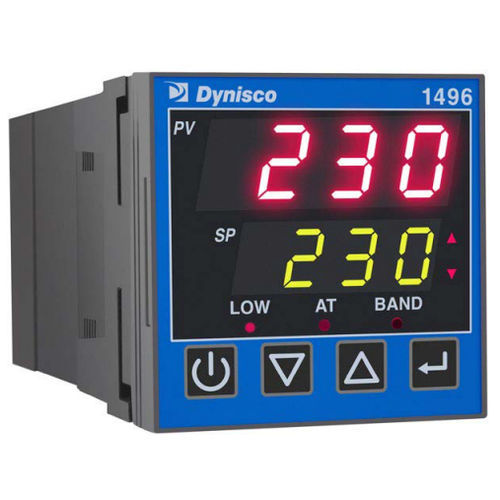

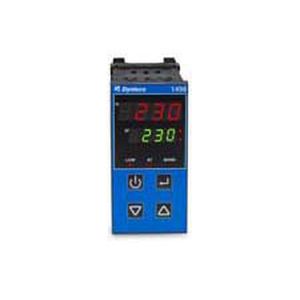

With two DIN sizes and multiple output configurations, the controller is suitable for twin and single screw extruders, both heat only die and adapter zones, in addition to heat/cool for barrel zones. The 1496 (1/16 DIN format) & 1498 (1/8 DIN format) Series can also be used in an indicator-only mode, allowing one instrument to be used for all applications. With three default parameter sets for Indicator, heat and heat/cool modes, the 1496 & 1498 Series controllers offer the ultimate in flexibility for the control of industrial plastic extruders.

Specifications
Fast configuration to match specific settings and default parameters of the extruder
Single device for heat control-only, heat/cool control, or indicator-only
Universal input
Selectable controller or indicator modes
Heat only or heat/cool control type
Process & loop alarms
Available in 1/16 & 1/8 DIN formats
Modbus RS485 communications
Ramping setpoint
Process alarms have adjustable hysteresis
Three alarm settings are standard and can be used for process high, process low, SP deviation, band, logical OR / AND, loop alarm for process control security

Parameter Name	Parameter Value
Display	with LED display
Protection level	IP20 IP66
Use	process industrial
Other characteristics	universal RS-485 4-20 mA
Maximum temperature (°C)	0 - 55
