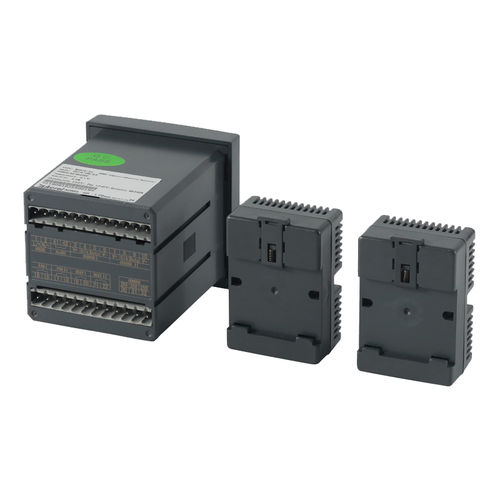

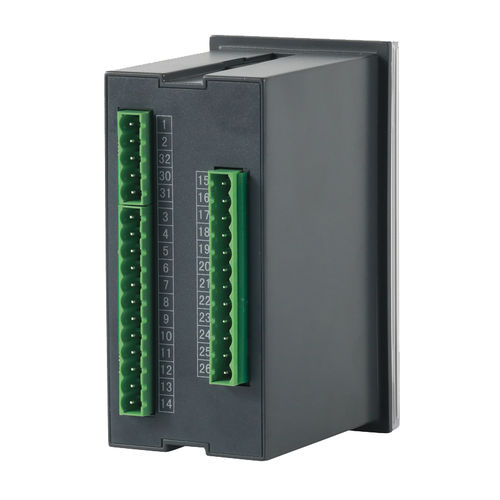

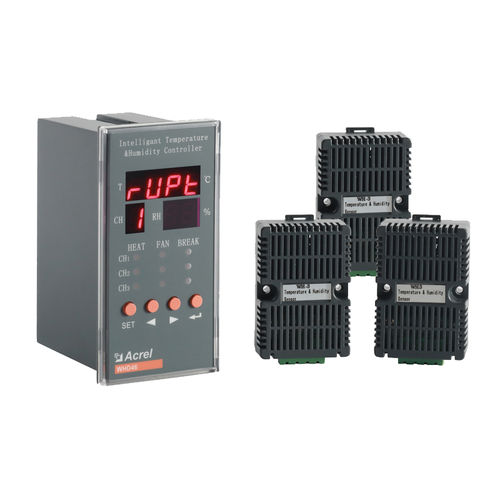

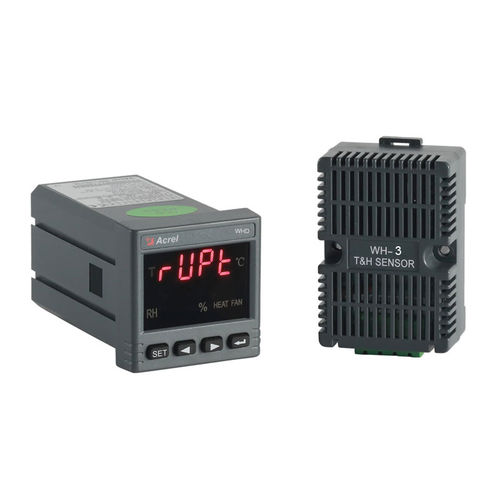

Temperature controller with LCD display WHD series

Temperature controller with LCD display WHD series

Temperature controller with LCD display WHD series

About


General
WHD sériés smart température and humidity controller is suitable for adjustment and control of température and humidity in equipments of high voltage switchgear, terminal box, ring networfc panel, box transformer substation etc. It can effectively protect relevant equipment from faults resulting from excessive low or high température, creepage or flashover etc.from humidity or condensation.

WHD48-11 Temperature & Humidity Controller
● Optional function: communication
● Temperature and humidity measuring & controlling
● Panel mounted

Function
Accuracy

Temperature ±1℃

Humidity ±5%RH

Auxiliary power supply

AC 85-265V, DC 100-350V

Consumption

Auxiliary power supply:

Basic power consumption(≤0.8w)

Relay power consumption(each channel≤0.7w)



PARAMETERS

Parameter Name Parameter Value
Display
with LCD display
Other characteristics
with humidity control
Maximum temperature (°C)
-40 - 99
