Infrared Thermal imager

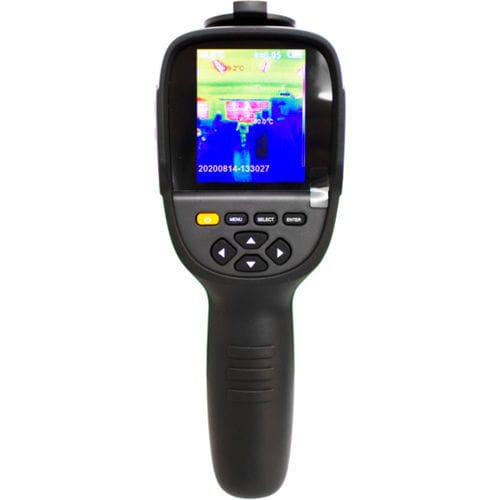

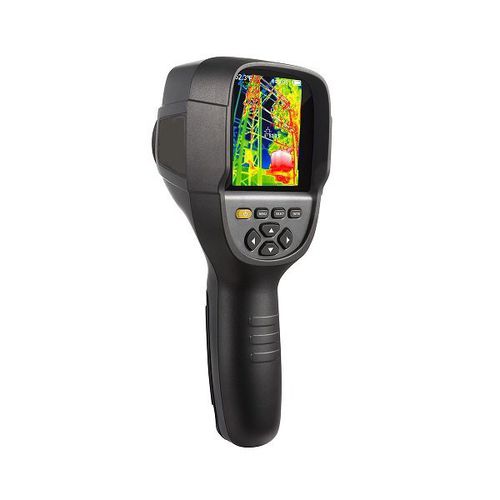

TIG-320 infrared thermal imager adopts the latest technology, which can merge visible light images and infrared thermal images together. This infrared imaging device is advanced and professional, accurate, and efficient to provide better quality and high-quality thermal images.
Product Introduction:
Built-in 3GB memory, check on a computer or other equipment, widely used in fire fighting, archeology, transportation, agriculture, electronics manufacturing, and other fields
Measurement Specification:
Temperature Ranges: -20 ~ 300 °C ( -4 ~ 572 F°)
Image Resolution: 320 x 240
Accuracy: ±(2%) or +2°C
Resolution: 0.07
Viewing angle / Focusing Distance: 56° x 42° / 0.15 meter
Wavelength Range: 8 ~ 14μm
Screen Update Rate: 9Hz
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Display |
with LCD display
|
| Type |
thermoelectric
|
| Protection level |
standard
|
| Use |
|
| Other characteristics |
compact
|
| Maximum temperature (°C) |
-20 - 300
|
