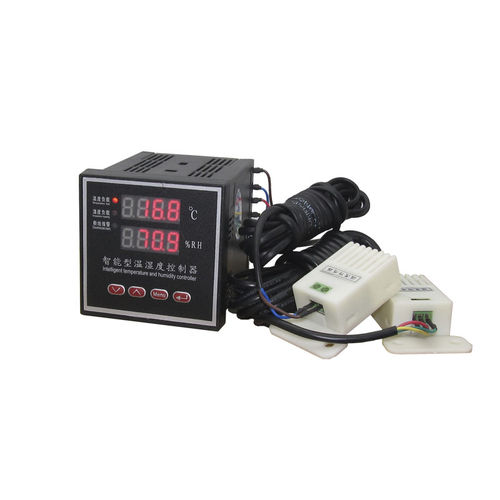

Intelligent humidity controller with completed FUZZY algorithm provides very precise of temperature monitor. FUZZY algorithm control fan or heater to maintain sensible & latent capacity follows humidity curve by automatically. Display unit can show environment humidity as per configure by user. The user also can adjust environment condition very easily.

-. Digital thermostat with 2 control port for fan & heater
-. 4 digital LED screen for temperature and humidity value (optional LCD screen)
-. Sensor length max 10meter (default 3meter)
-. 72*72mm panel mounting size

Power Supply:
85V~265VAC/DC 50Hz
Optional 24/48DC
Power consumption:
<5VA
Input signal channel:
Max 2 channels
Temperature sensor:
NTC (-20~99C) or customer request
Humidity sensor:
Digital type (0~99RH) or customer request
Sampling ratio:
400ms
Load control channel:
Max 2 channels
250VAC, 5A (10A optional)
Analog Outputs (Optional):
1 channel Isolated
0 / 4 ... 20 mA
Alarms Outputs (Optional):
1 channel DO
230 VAC 5 A
Communication Port (Optional):
RS485 (2/3 wires half duplex)
Modbus RTU mode

MODELS
S-42-W1S1-K2:
Size:72*72*96mm
One channel temperature detect & control
One channel humidity detect and control
S-42-W2-K2:
Size:72*72*96mm
Two channel temperature detect and control
S-42-S2-K2:
Size:72*72*96mm
Two channel humidity detect and control

Parameter Name	Parameter Value
Display	with LCD display with LED display double LED display dial
Type	programmable with remote control multi-loop
Protection level	standard IP40 EMC
Use	heating cooling for transformers
Other characteristics	panel-mount configurable RS-485 remote DIN rail 4-20 mA automatic with humidity control economical 2-way
Maximum temperature (°C)	0 - 99
