Temperature control unit KDT 210

Temperature control unit KDT 210

Temperature control unit KDT 210

About

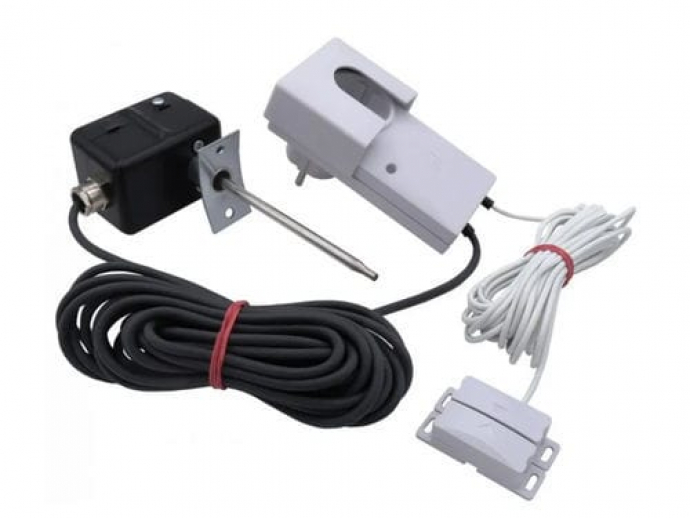

This package without DIBt approval includes a classic cable exhaust air control set KDS 210 consisting of a window solenoid switch with intermediate plug control unit and an exhaust gas temperature monitor ATW 519 with integrated cable breakage protection for a free piece of stove pipe that is accessible at any time, with all components already pre-assembled. Due to the additional temperature switch, the exhaust air system can be operated independently of the window position as long as the furnace is cold; opening the window is only necessary when the furnace is in operation.

Hint: Involve your chimney sweep in your planning before installation so that nothing stands in the way of acceptance afterwards. There are significant regional differences, on which Elektrotechnik Schabus has no influence.

POSSIBLE APPLICATIONS
Fume cupboard control
Exhaust air control

DESCRIPTION

The control unit is simply plugged in between the socket and the mains plug of the cooker hood. The mains plug fuse prevents the appliance plug of the cooker hood from being reconnected. The control wires are installed on the window contact switch and the thermal switch.

The set should be mounted by a professional company.

6 meters each of control and silicone lines enclosed. The lines must be firmly mounted as surface-mounted lines.

Second window:
The system can be combined with another cable solenoid switch KMS 098K22 for a second window. At least one window must then be open so that the exhaust air system can be switched on while the furnace is in operation.



PARAMETERS

Parameter Name Parameter Value
Applications
temperature
