“Standard will get you from A to Z, custom will take you everywhere!” -Hitcontrols engineer.
This is a hot runner accessory for plastic injection molding machines, but we will give you a different experience in the operation. Providing precise temperature control for the hot runner system. Quite simply, deliver reliable performance, affordable price.
Besides the common control modules with LED displays, we have option LCD type, 15 Amp as well. Did you know that? Currently, there are only less than 7 manufacturers providing LCD types in the market.

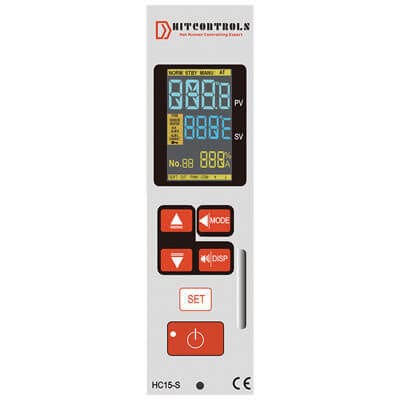

Hitcontrols Hot Runner Controllers are designed based on high-intellect microprocessor technology. Optional LED/color LCD display, single-zone/dual zones for hot runner temperature control applications.
Power input: 85~265Vac, 50/60Hz
Output current/watts: 15amps, 3600watts
Input: type J/K
Temperature unit: ℃/℉
Setting range: 0~450℃（32~842℉）
Control accuracy: ±0.1%F.S
Mainframes: 1~24 zones
Compatible with DME, ITC, FastHeat, INCOE, MCS
Auto/Manual/Standby
Load current/output percentage display
Zero cross or phase angle output
Soft-start, Boost function
High/low temperature alarm
Fuse blowout indicator
T.C & heater inverse
Controller locking function
All operating information is displayed on the screen, instead of codes. Saving your customer most time on codes means checking. And increase their operation efficiency by 25%.
Color LCD display
Zone number display
1 or 0.1 unit display resolution
Selectable controller state on restart
Automatic Switch to Manual mode if T.C failure
High limit of output percent
Remote standby or alarm output (option)
RS485 (option)
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Options |
|
