Datalogger for temperature and humidity. By using the attached software, logged data can be easily displayed as a graph on a PC. Two types of probes are sold separately.

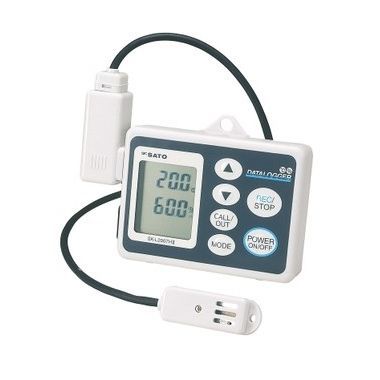

Datalogger Model SK-L200THII
Datalogger for temperature and humidity.
By using the attached software, logged data can be easily displayed as a graph on a PC.
Two types of probes are sold separately.

Features

* Memory capacity is 8100 lines of data per channel.
(It is possible to store data for about 506 days with log interval of 90 minutes and about 168 days with log interval of 30 minutes.)
* The method of storing data is selectable among four logging options :

1. Once (default)
When Once is chosen, the datalogger keeps logging until the memory becomes full. The datalogger stops logging when 8100 lines of data are recorded.

2. Repeatability (overwriting)
The datalogger overwrites the existing data from the start once the 8100 lines of data are recorded. This is ideal for collecting data during a certain period.

3. Ends at (limited amount)
With this logging option, you can specify the end-point for the datalogger to stop logging. This setting is ideal when you want to limit the amount of data to be collected.

4. By page (partitioning)
The storage memory is partitioned into blocks, each having the capacity to store 200 lines of data. This enables the datalogger to perform four different tasks in sequence while storing each task's data in one of the four different memory blocks (pages). This is ideal when you want to collect data from multiple sites using one datalogger.

Parameter Name	Parameter Value
Measured quantity	temperature and humidity
Connector type	USB
Display	with LCD display
