About
Sensor data measured with UA, where do you want to send it?
Various USB type UA sensors can be attached and detached
UA1X: temperature and humidity, high temperature, low temperature, ultra low temperature
UA2X: 4-20mA, 0-20mA, 0-1V
UA5X: Gas sensors (VOC, O2, CO2, CO, SO2, NO2, NH3, H2S, EO, H2)
WiFi IEEE 802.11 b,g
Data transmission through HTTP, MODBUS TCP, Telnet
Front 2-channel LED display / built-in buzzer
Easy sensor calibration and replacement by attaching and detaching USB
· Cloud-based text transmission, phone transmission, and email report transmission
· Radionode365 Cloud Serivce monitoring service support
· Tapaculo Lite PC type software support
Replaceable sensor support

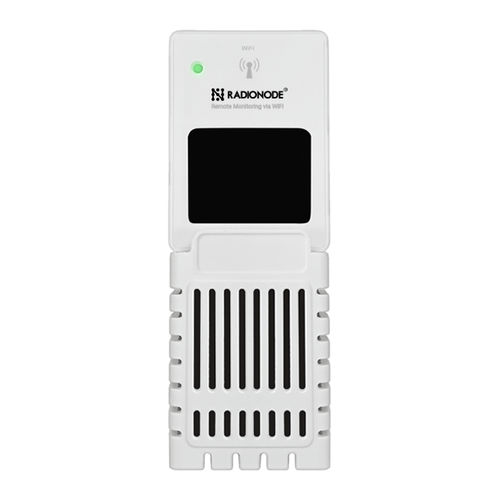

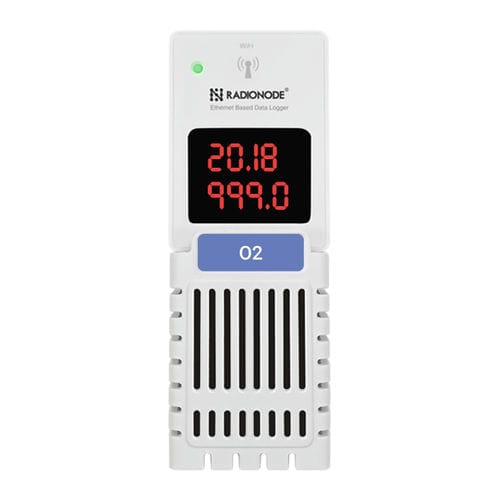

RN172plus product is a data transmitter developed to easily build a sensor monitoring system using a general-purpose communication network. In order to support various sensors, the sensor part is in the form of a USB and has been developed for the user to select.
Popular IoT, digital data transmission
The physical communication method supports WiFi, and WiFi-ENT with high security level is also supported. In addition, by supporting various protocols such as MODBUS-TCP, HTTP, Telnet, etc., it is possible to construct a sensor monitoring system very conveniently even in a facility with a universal network.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Measured quantity |
temperature and humidity
|
| Connector type |
WiFi, Modbus
|
| Display |
with LCD display
|
| Other characteristics |
|
