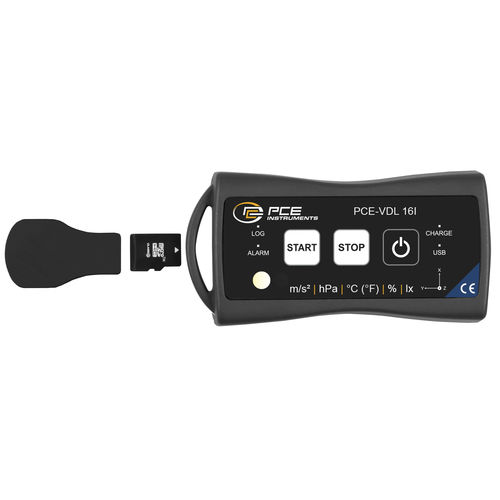

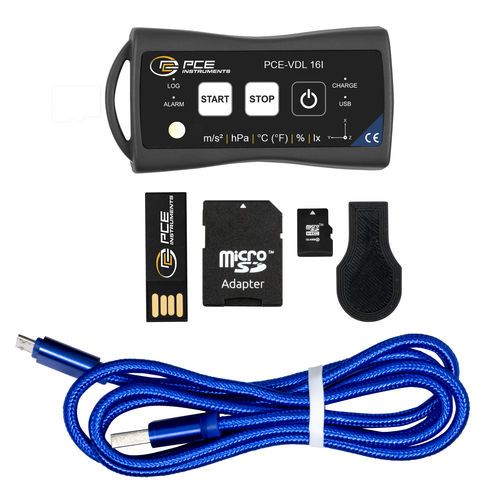

The data logger PCE-VDL 16I from PCE Instruments measures and stores the relevant measured variables: temperature, relative humidity, air pressure, light as well as acceleration in three axes by means of a vibration sensor. Therefore, this data logger is ideal for monitoring vibrations on machines while simultaneously measuring and recording the relevant environmental conditions of the system.


- 3-Axis acceleration up to 800 Hz
- 2 GB SD memory card

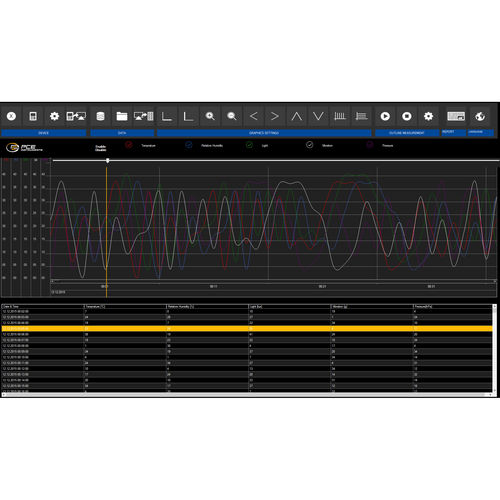

- Evaluation software
- Small design: 86.8 x 44.1 x 22.2 mm
- Additional measurement parameters:
Temperature, Humidity, Air pressure and Light

Parameter Name	Parameter Value
Measured quantity	temperature and humidity, relative humidity, dew-point, pressure, acceleration, shock, vibration, light-intensity, brightness, motion
Connector type	USB
Display	without display
Applications	for monitoring storage for logistics for refrigerators for cold chain monitoring
Other characteristics	portable programmable compact digital battery-powered multifunction miniature high-accuracy climatic with integrated thermal collector
